Large Project Motorized Projection Screen LC2 Series
Large Project Iron Housing Motorized Projection Screen
◆◆ Product Specification
| Housing Material: | IRON |
| Housing Color: | Black |
| Size: | 180~275 inch / customized |
| Aspect Ratio: | 16:9 / 16:10 / 4:3 / 1:1 / 2.35:1 / customized |
| HD: | Yes |
| 3D: | Yes |
| 4K: | Different fabrics are optional |
◆◆ Product Description

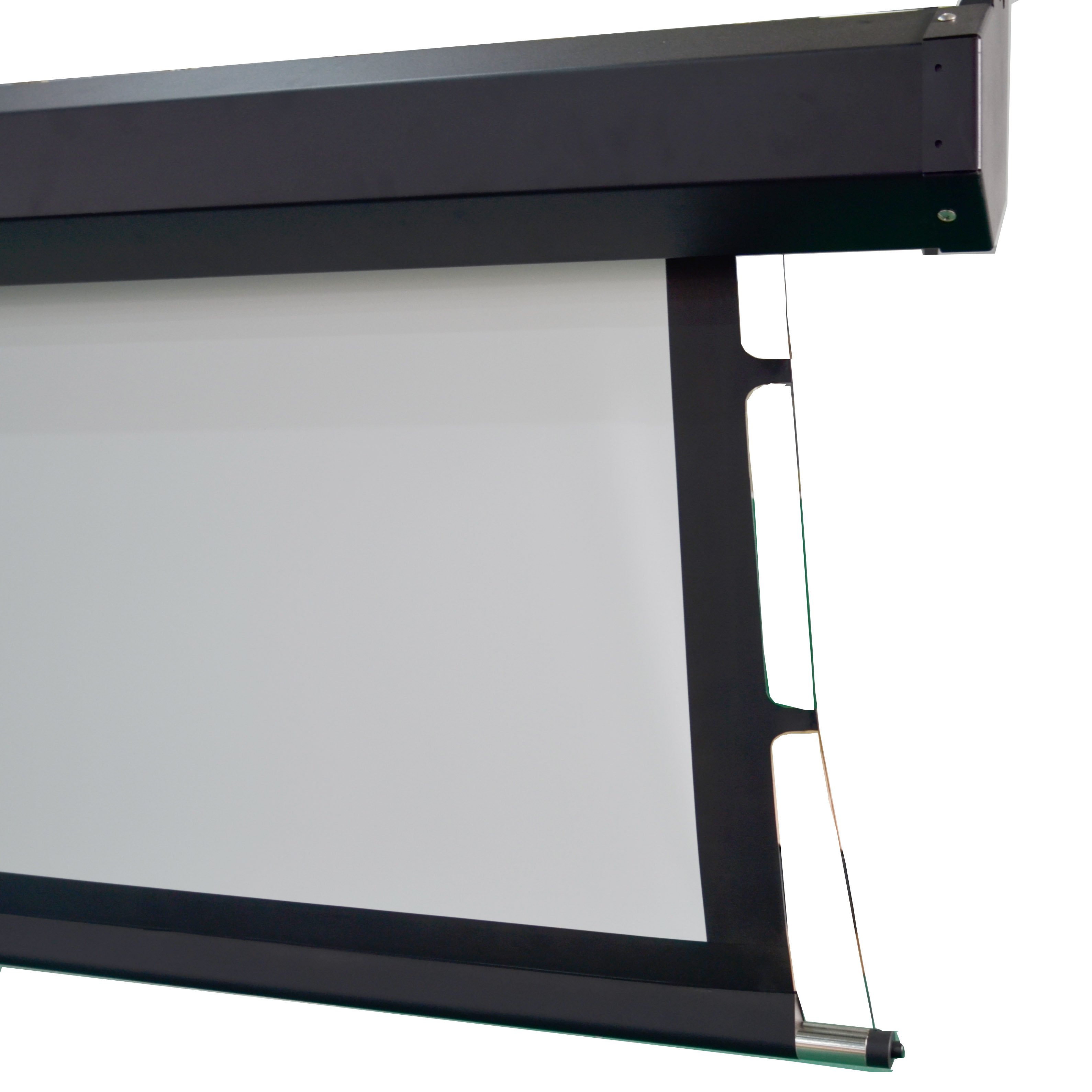

XY Screens Large Motorized Projection Screen LC2 is a tab-tensioned motorized screen designed to address today’s larger commercial venues. Motor in roller design - Special Motor in roller design keeps quiet and smooth operation.
Stylish and durable - The strong steel case is stylish and durable, available in black color. The strong bottom bar will retract into the case as a cover.
Equipped with quiet tubular motor - Equipped with quiet tubular motor keeps a quiet operation.
Unique roller design ensures the flattest screen surface - Large diameter rollers ensure long-term screen integrity providing a consistent flat projection surface.
Custom size - Black border are all around the screen fabric. Standard large upper black drop for format at 16:9 and 4:3. Customer-required format or black border is acceptable.
Equipped with IR/RF control, 12V trigger port and high quality controller.
◆◆ Product Feature
High Qulity Iron Housing
Nice Round Prolonged Pole
Large Torque Tubular
◆ High strength large diameter tube, avoid long tube bending down of the middle
◆ Large torque tubular motor, smooth running.
◆ Unique large screen fabric, flexible, flatness and eco-friendly.
Built-in Remote Control
IR &RF Remote Control are optional. RF remote-controlled distance reached 25m in any direction. IR remote-controlled distance reaches 8m, in the direction ± 60 degree.
External RF Remote Control
You can control the screen up and down with the manual switch
or the remote control.
Intelligent Remote Control System
◆IR Remote Control ◆RF Remote Control ◆Central Control Adoptor ◆ Multi-Control Options
| Format | Size | Viewing Area | Left-Right Black Border |
Bottom Black Border |
Top Black Border |
Total Height |
Total Length | Package Size | N. W. | G. W. | |||
| W(mm) | H(mm) | B1 | B2 | B3 | A | Non- tension |
Tab- tension |
Non-tension | Tab-tension | (KG) | (KG) | ||
| 16:9 | 180" | 3985 | 2240 | 50 | 50 | 100 | 2602 | 4247 | 4427 | 4341*211*223 | 4521*211*223 | 48 | 54 |
| 200" | 4427 | 2489 | 50 | 50 | 100 | 2851 | 4689 | 4869 | 4783*211*223 | 4963*211*223 | 53 | 60 | |
| 220" | 4870 | 2738 | 50 | 50 | 150 | 3170 | 5137 | 5327 | 5236*268*222 | 5426*268*222 | 64 | 74 | |
| 250" | 5534 | 3112 | 50 | 50 | 150 | 3544 | 5801 | 5991 | 5900*268*222 | 6090*268*222 | 72 | 84 | |
| 4:3 | 180" | 3658 | 2743 | 50 | 50 | 100 | 3105 | 3920 | 4100 | 4014*211*223 | 4194*211*223 | 46 | 51 |
| 200" | 4064 | 3048 | 50 | 50 | 100 | 3410 | 4326 | 4506 | 4420*211*223 | 4600*211*223 | 51 | 57 | |
| 220" | 4470 | 3353 | 50 | 50 | 150 | 3785 | 4737 | 4927 | 4836*268*222 | 5026*268*222 | 61 | 71 | |
| 250" | 5080 | 3810 | 50 | 50 | 150 | 4242 | 5347 | 5537 | 5446*268*222 | 5636*268*222 | 69 | 80 | |
