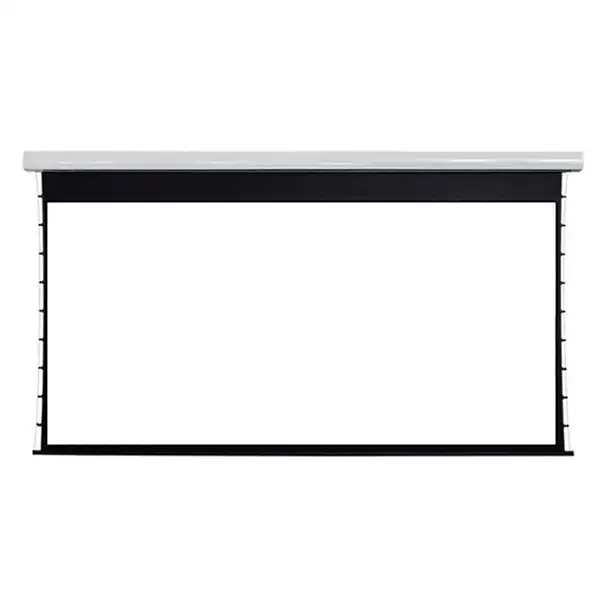

Large Intelligent Motorized Projection Screen EC150 Series
Large Intelligent Motorized Projection Screen
◆◆ Product Specification
| Housing Material: | Aluminum Alloy |
| Housing Color: | White |
| Size: | 180~250 inch / customized |
| Aspect Ratio: | 16:9 / 16:10 / 4:3 / 1:1 / 2.35:1 / customized |
| HD: | Yes |
| 3D: | Yes |
| 4K: | Different fabrics are optional |
◆◆ Product Description
EC150 series is a high-end paint aluminum shell intelligent electric screen, adopt large diameter silence Rotating-tube, automatic smoothing screen structure and aseismic design. With unique two piece casing design, provides a great convenience for repairing and commissioning.
Motor in roller design - Special Motor in roller design keeps quiet and smooth operation.
Stylish and durable - The aluminum alloy case is stylish and durable, available in white color. The strong bottom bar will retract into the case as a cover.
Equipped with quiet tubular motor - Equipped with quiet tubular motor keeps a quiet operation.
Unique roller design ensures the flattest screen surface - Large diameter rollers ensure long-term screen integrity providing a consistent flat projection surface.
Custom size - Black border are all around the screen fabric.Standard large upper black drop for format at 4:3/16:9/2.35:1. Customer-required format or black border is acceptable.
Equipped with IR/RF control, 12V trigger port and high quality controller.
◆◆ Product Features
Fashable Aluminum Shell
Two pieces casing design
Aseismic Design
Safe Hanging Pane
◆ EC150 using high quality paint aluminum shell: fashable, generous and graceful.
◆ Two pieces casing design provide a great convenience for repairing and coomissioning.
◆ Aseismic design reducing vibration and noise.
◆◆ Dynamical System
Using Large torque tubular motor from famous motor factory, durable and powerful.
Intelligent Remote Control System
◆ IR Remote Control ◆ RF Remote Control ◆ Central Control Adoptor ◆ Multi-Control Options
|
Product Model |
Fabric Model | HD/4K | Support 3D Mode | Sound-Transparent |
| EC150-Sound Max5 | Sound Max5 | 4K | Active | Yes |
| EC150-Sound Max4K | Sound Max4K | 4K | Active | Yes |
| EC150-WF1PRO | WF1PRO | 4K | Active | No |
| EC150-WG1 | WG1 | HD | Active | No |
| EC150-MF1 | MF1 | HD | Active +Passive | No |
| EC150-MFS1 | MFS1 | HD | Active +Passive | Yes |
| Format | Size | Viewing Area | Left-Right Black Border |
Bottom Black Border |
Top Black Border |
Total height | Total Length | Package Size | N. W | G. W | ||
| Bulit in RF | Externa1 RF |
L*W*H | ||||||||||
| w | H | B1(mm) | B2(mm) | B3(mm) | A(mm) | La(mm) | Lb(mm) | (mm) | (kg) | (kg) | ||
| 4:3 | 180" | 3658 | 2743 | 50 | 80 | 100 | 3115 | 4134 | 4130 | 4224*240*264 | 56 | 61 |
| 200" | 4064 | 3048 | 50 | 80 | 100 | 3420 | 4540 | 4536 | 4630*240*264 | 61 | 67 | |
| 220" | 4470 | 3353 | 50 | 80 | 150 | 3775 | 4946 | 4942 | 5036*240*264 | 66 | 73 | |
| 250" | 5080 | 3810 | 50 | 80 | 150 | 4232 | 5556 | 5552 | 5646*240*264 | 74 | 82 | |
| 16:9 | 180" | 3985 | 2240 | 50 | 80 | 100 | 2612 | 4461 | 4457 | 4551*240*264 | 58 | 65 |
| 200" | 4427 | 2489 | 50 | 80 | 100 | 2861 | 4903 | 4899 | 4993*240*264 | 64 | 71 | |
| 220" | 4870 | 2738 | 50 | 80 | 150 | 3160 | 5346 | 5342 | 5436*240*264 | 70 | 77 | |
| 250" | 5534 | 3112 | 50 | 80 | 150 | 3534 | 6010 | 6006 | 6100*240*264 | 78 | 86 | |
| 2.35:1 | 180" | 4206 | 1790 | 50 | 80 | 100 | 2162 | 4682 | 4678 | 4772*240*264 | 60 | 67 |
| 200" | 4674 | 1989 | 50 | 80 | 150 | 2411 | 5150 | 5146 | 5240*240*264 | 66 | 73 | |
| 220" | 5140 | 2180 | 50 | 80 | 150 | 2602 | 5616 | 5612 | 5706*240*264 | 72 | 79 | |
