Ambient Light Rejecting Projector Screen ZHK100B-Black Crystal
◆◆ Product Description

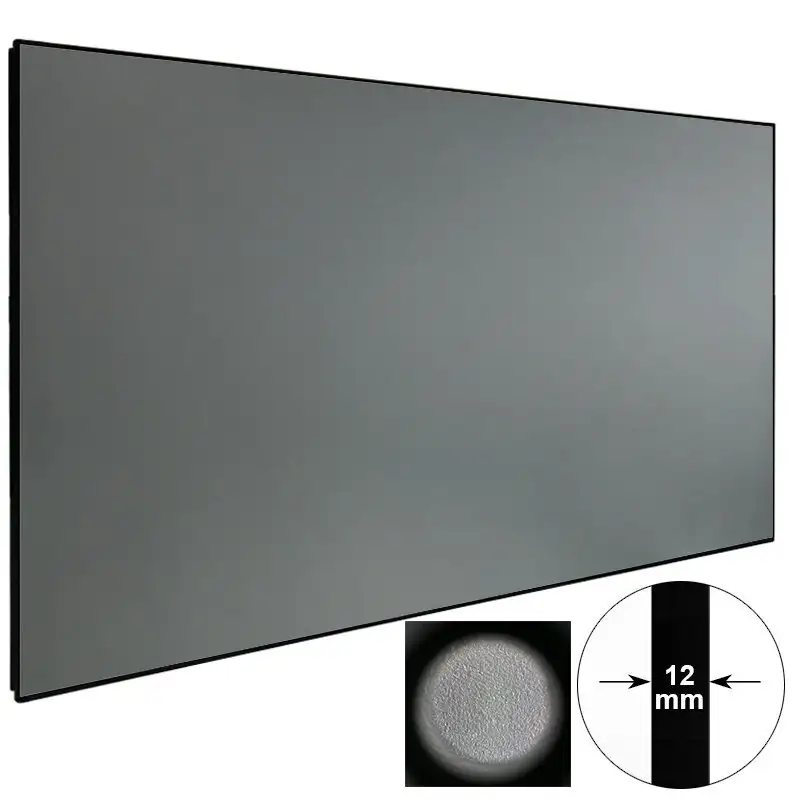

Our Curved Ultra Thin Frame Projection Screen CZHK100B which provides the thinnest visible bezel/frame available in the market today is uniquely designed to resemble a premium LED TV but with much larger viewing area options. CZHK100B Thin Edge Frame uses sturdy extruded aluminum alloy frame with 12mm edge border that offers maximized viewing, making this an excellent addition to both home theater and commercial applications. Watch as your viewing experience soars to new heights of enjoyment!
Excellent picture quality - Suitable for 4K & 3D television/movies.
Installation is easy - With its easy and adjustable fabric spring system, our Thin Frame Screen is perfectly and permanently tensioned, ensuring that the screen is as flat and level as the mirror. Special designed slim bracket for an easy click on installation, also available as an in-wall display. Therefore, the users are able to set up in seconds.
◆◆ Product Specification
| Frame Material: | Aluminum Alloy |
| Housing Color: | Black / White / Grey / Orange / Blue / Golden Velvet |
| Size: | 80-200 inch / customized |

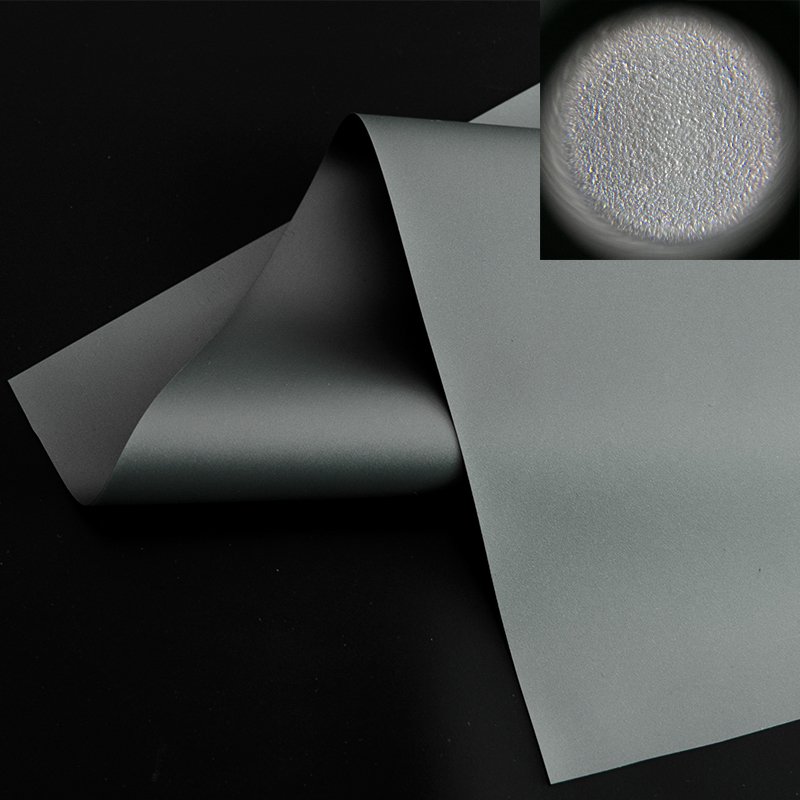

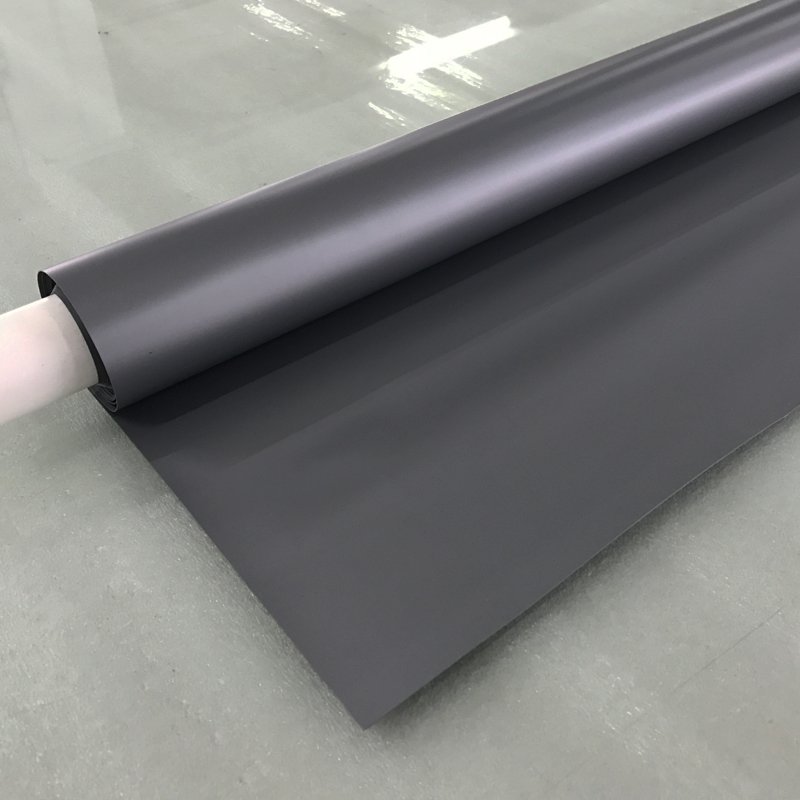

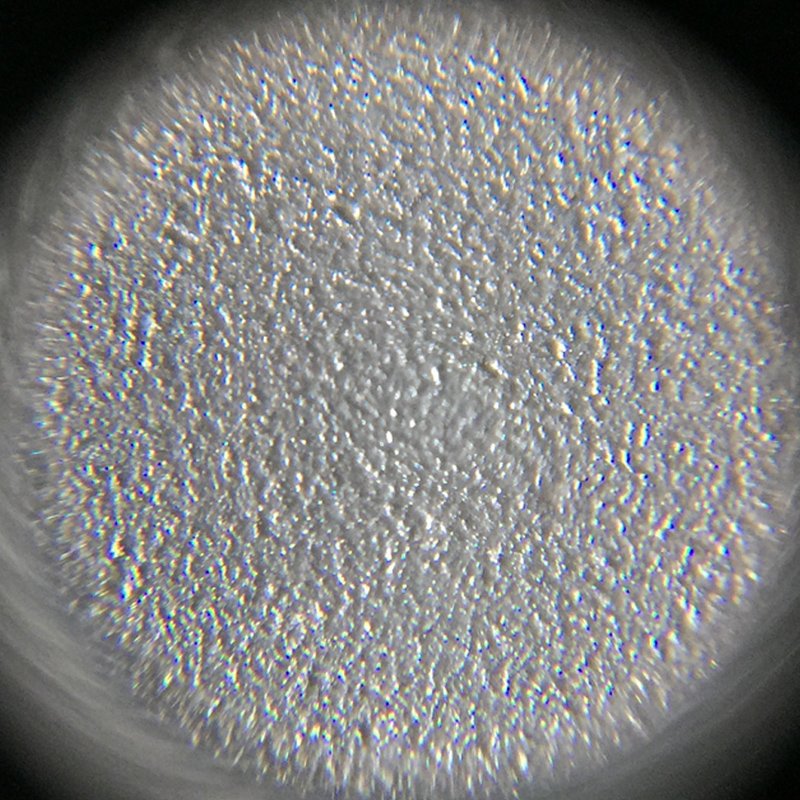

| Fabric: | Black Crystal |
| Aspect Ratio: | 16:9 / 16:10 / 4:3 / 1:1 / 2.35:1 / customized |
| Frame Width: | 12mm |
| HD: | Yes |
| 3D: | Yes |
| 4K: | Different fabrics are optional |
◆◆ Product Features
◆ Four Sided Tension Design - Spring System
The tension springs along with the fixing lugs stretching and tightening the fabric to make the screen surface completely flat and wrinkle-free
◆ In order to facilitate transport, horizontal frame of 120"+ will be jointed by two or three pieces to reduce the total length
◆◆ Installation Accessories
1. Top Bracket 2. Bottom Bracket 3. Inter Corner Brace 4. External Connecting Bar
5. Connecting Bar 6. Screwdriver 7. Hook(To install the springs) 8. (Accessories of curved frame only )
◆◆ Available in the following front projection screen materials
| Product Model | Fabric Model | HD/4K | Support 3D Mode | Sound-Transparent |
| CZHK100B-Black Crystal III | Black Crystal III | 4K | Active | No |
| CZHK100B-WF1 Pro | WF1 Pro | 4K | Active | No |
| CZHK100B-WF1 Pro Max 4K | WF1 Pro Max 4K | 4K | Active | No |
| CZHK100B-WF1 Pro Max 4K HG | WF1 Pro Max 4K HG | 4K | Active | No |
| CZHK100B-Sound Max 4K | Sound Max4K | 4K | Active | Yes |
| CZHK100B-Sound Max 5 | Sound Max5 | 4K | Active | Yes |
| CZHK100B-Sound Max 5 HG | Sound Max5 HG | 4K | Active | Yes |
◆◆ Installation of ZHK100B Series
1. According to the quantity of the mounting brackets and appropriate distance, you should install the brackets at the suitable position on the wall with screws.
2. Hang the screen on the wall.
◆◆ Dimension of ZHK100B
| Ultra Thin Frame Projection Screen | |||||||
| Format | Size | View Area | Frame Size | Package Size | Frame Width(mm) | ||
| (inch) | W*H(mm) | Frame Length(L)\ | Frame Width(A) | L(mm)*W(mm)*H | |||
| 16:9 | 80" | 1771 | 996 | 1795 | 1020 | 1983*342*148 | 12 |
| 90" | 1992 | 1120 | 2016 | 1144 | 2204*342*148 | 12 | |
| 100" | 2213 | 1245 | 2237 | 1269 | 2425*342*148 | 12 | |
| 110" | 2435 | 1369 | 2459 | 1393 | 2647*342*148 | 12 | |
| 120" | 2656 | 1494 | 2680 | 1518 | 2868*342*148 | 12 | |
| 135" | 2988 | 1681 | 3012 | 1705 | 3200*342*148 | 12 | |
| 140" | 3099 | 1743 | 3123 | 1767 | 3311*342*148 | 12 | |
| 150" | 3320 | 1867 | 3344 | 1891 | 3532*342*148 | 12 | |
| 160" | 3542 | 1992 | 3566 | 2016 | 3680*342*148 | 12 | |
| 170" | 3763 | 2116 | 3787 | 2140 | 3754*342*148 | 12 | |
| 180" | 3984 | 2241 | 4008 | 2265 | 2596*240*264 | 12 | |
| 200° | 4427 | 2490 | 4451 | 2514 | 2847*240*264 | 12 | |
| 4:3 | 100" | 2032 | 1524 | 2056 | 1548 | 2244*342*148 | 12 |
| 120" | 2438 | 1828 | 2462 | 1852 | 2650*342*148 | 12 | |
| 150" | 3048 | 2286 | 3072 | 2310 | 3260*342*148 | 12 | |
| 180" | 3657 | 2743 | 3681 | 2767 | 3869*240*264 | 12 | |
| 200" | 4064 | 3048 | 4088 | 3072 | 3399*240*264 | 12 | |
| 2.35:1 | 120" | 2804 | 1193 | 2828 | 1217 | 3016*342*148 | 12 |
| 135" | 3155 | 1342 | 3179 | 1366 | 3367*342*148 | 12 | |
| 150" | 3505 | 1491 | 3529 | 1515 | 3717*342*148 | 12 | |
| 180" | 4206 | 1790 | 4230 | 1814 | 2300*240*264 | 12 | |
| 200" | 4674 | 1989 | 4698 | 2013 | 2534*240*264 | 12 | |
◆◆ Package
All of our projection screens are packed with sturdy carton box, and the surface of the carton covered a waterproof plastic film to prevent damage during transportation.
