Professional in producing projection screens over 11 years

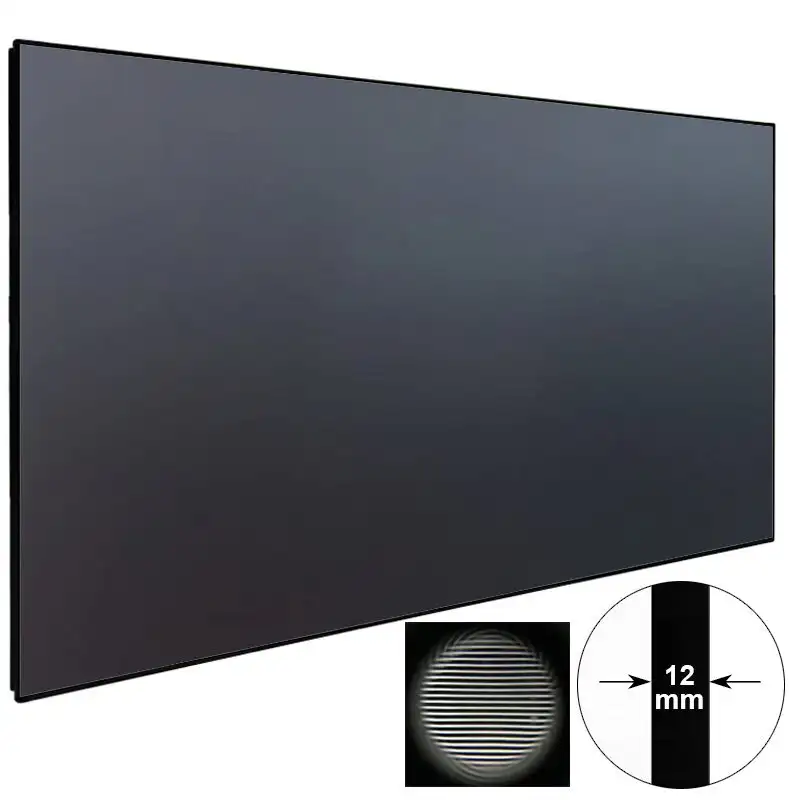

Our Ultra Thin Frame Projection Screen ZHK100B which provides the thinnest visible bezel/frame available in the market today is uniquely designed to resemble a premium LED TV but with much larger viewing area options. ZHK100B Thin Edge Frame uses sturdy extruded aluminum alloy frame with 12mm edge border that offers maximized viewing, making this an excellent addition to both home theater and commercial applications. Watch as your viewing experience soars to new heights of enjoyment!
Excellent picture quality - Suitable for 4K & 3D television/movies.
Installation is easy - With its easy and adjustable fabric spring system, our Fixed Frame Screen is perfectly and permanently tensioned, ensuring that the screen is as flat and level as the mirror. Special designed slim bracket for an easy click on installation, also available as an in-wall display. Therefore, the users are able to set up in seconds.
◆◆ Product Specification
| Frame Material: | Aluminum Alloy |
| Housing Color: | Black |
| Size: | 80-200 inch / customized |
| Aspect Ratio: | 16:9 |
| Frame Width: | 12mm |
| HD: | Yes |
| 3D: | Yes |
| 4K: | Yes |
◆◆ Product Features
◆ Four Sided Tension Design - Spring System
The tension springs along with the fixing lugs stretching and tightening the fabric to make the screen surface completely flat and wrinkle-free
1. Top Bracket 2. Bottom Bracket 3. Inter Corner Brace 4. External Connecting Bar
5. Connecting Bar 6. Screwdriver 7. Hook(To install the springs) 8. (Accessories of curved frame only )
Product Model | Fabric Model | HD/4K | Support 3D Mode | Sound-Transparent |
|---|---|---|---|---|
| ZHK100B-Black Crystal HG | Black Crystal HG | 4K | Active | No |
| ZHK100B-PET Crystal | PET Crystal | 4K | Active | No |
1. According to the quantity of the mounting brackets and appropriate distance, you should install the brackets at the suitable position on the wall with screws.
2. Hang the screen on the wall.
| Ratio | Size | Viewing Size | Total Size | Package Size | Frame Width (mm) | |||||
| Width(mm) | Height(mm) | Frame Width (mm) | Frame Height (mm) | Length*Height*Width (mm) | ||||||
| 16:9 | 80" | 1771 | 996 | 1795 | 1020 | 1983*342*148 | 12 | |||
| 90" | 1992 | 1120 | 2016 | 1144 | 2204*342*148 | 12 | ||||
| 100" | 2213 | 1245 | 2237 | 1269 | 2425*342*148 | 12 | ||||
| 110" | 2435 | 1369 | 2459 | 1393 | 2647*342*148 | 12 | ||||
| 120" | 2656 | 1494 | 2680 | 1518 | 2868*342*148 | 12 | ||||
