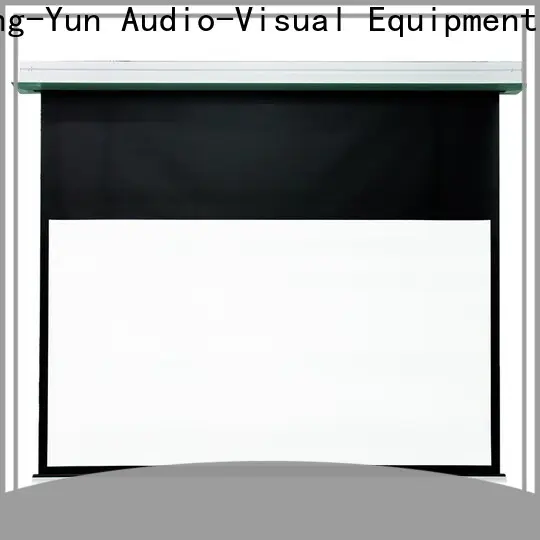

coated theater projector screen factory for indoors
1. Our theater projector screen has excellent body frame assembly characteristics of Standard motorized series . Facilitated with modern machines & equipments, we are able to meet all bulk orders
2. Its benefits are obvious. Consuming a little amount of energy, it helps manufacturers save production costs and gain more profits. XY projection screen is available in all common aspect ratios
3. This product has electromagnetic compatibility. The electromagnetic disturbances from this product are limited and it has an adequate level of immunity to the disturbances in its environment. XY projection screen help create a really epic entertainment

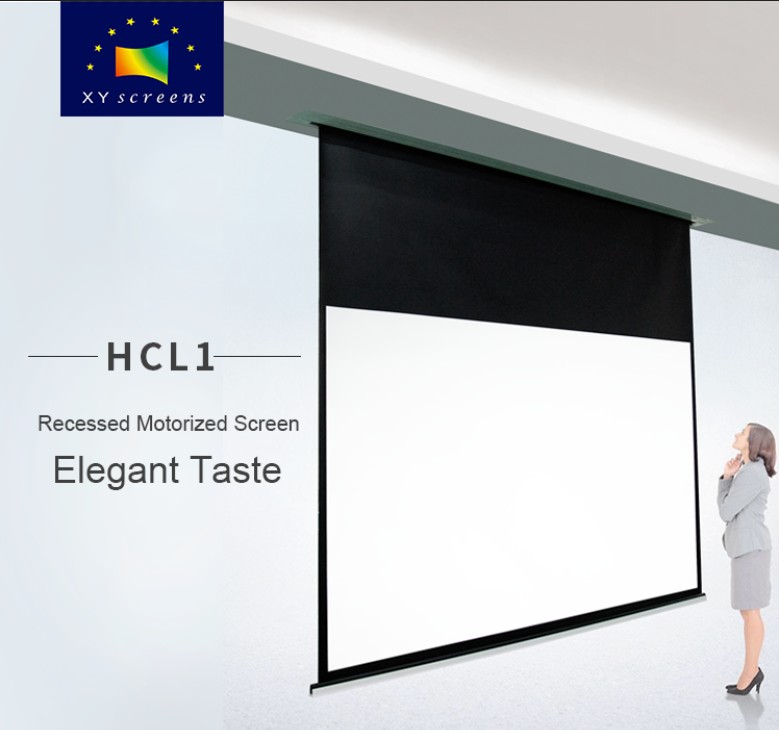

In-Ceiling Recessed Electric Projector Screen for Home Cinema HCL1
| Housing Material: | Aluminum Alloy |
| Housing Color: | White |
| Size: | 80-170 inch / customized |
| Aspect Ratio: | 16:9 / 16:10 / 4:3 / 1:1 / 2.35:1 / customized |
| Tab Tension: | Optional |
| 3D: | Yes |
| 4K: | Different fabrics are optional |

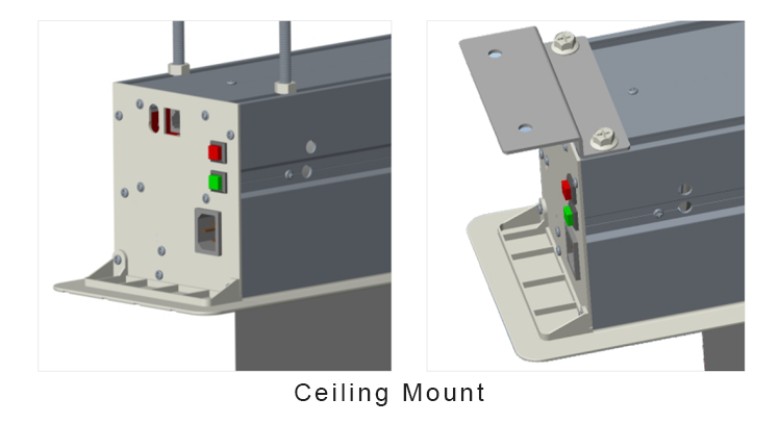

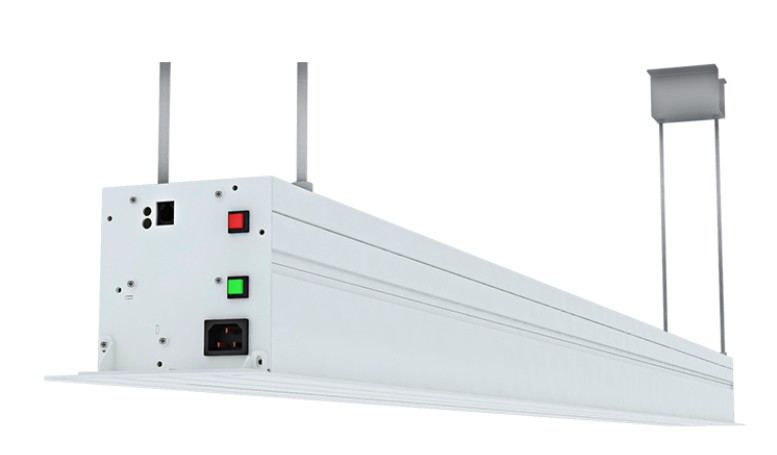

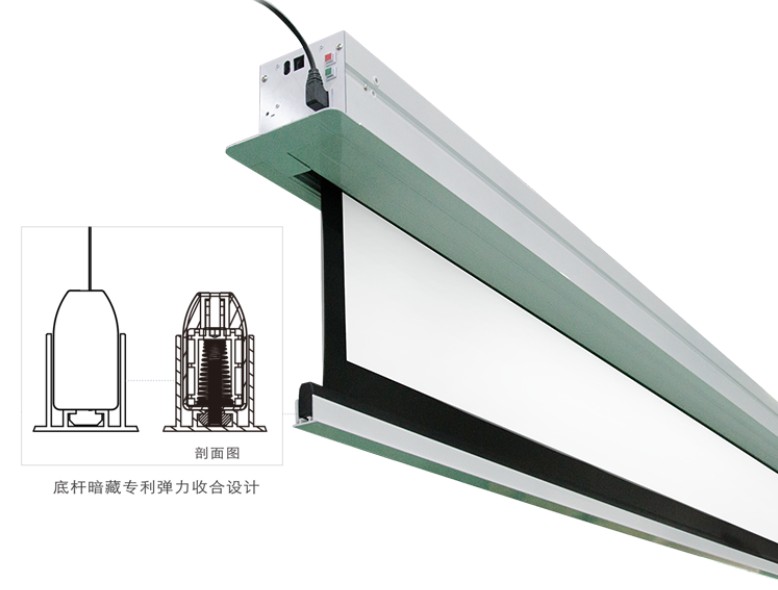

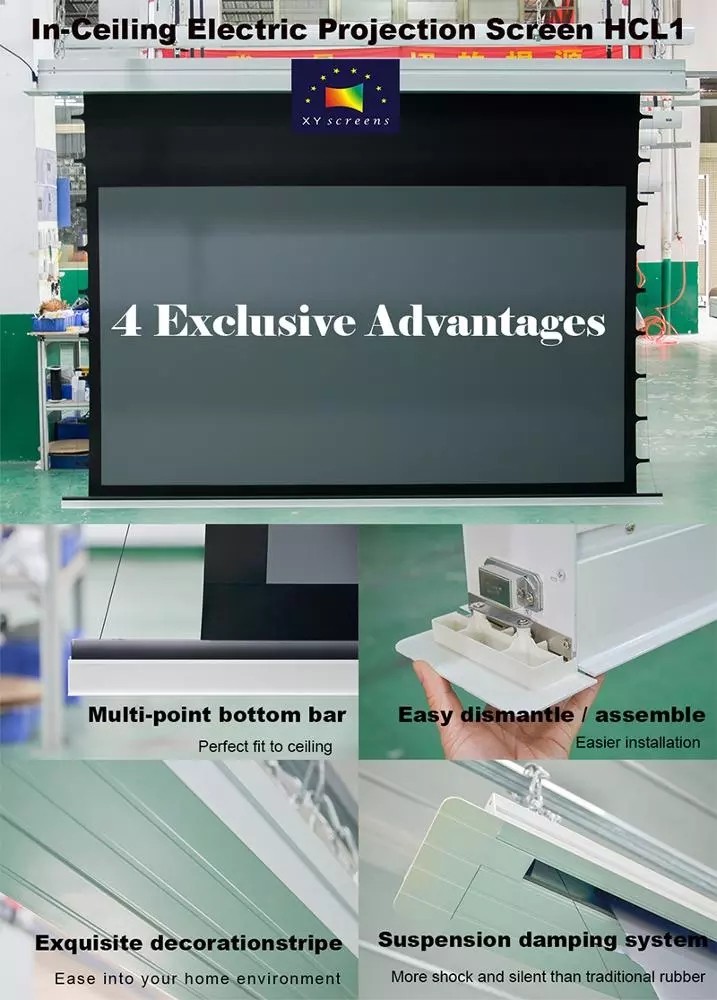

XY Screens In-Ceiling Electric Projection Screen HCL1 is a concealed in-ceiling mount electric screen, where the casing is mounted within the ceiling structure, creating a flush surface. The screen surface is flat, with exceptional color and uniformity. The screen surface provides an ultra-wide viewing angle of 160 degrees(different fabrics are optional) to avoid hot-spotting. This screen is perfect for any residential, commercial or house of worship installation that requires a flush-mounted projection screen that can be hidden while not in use.

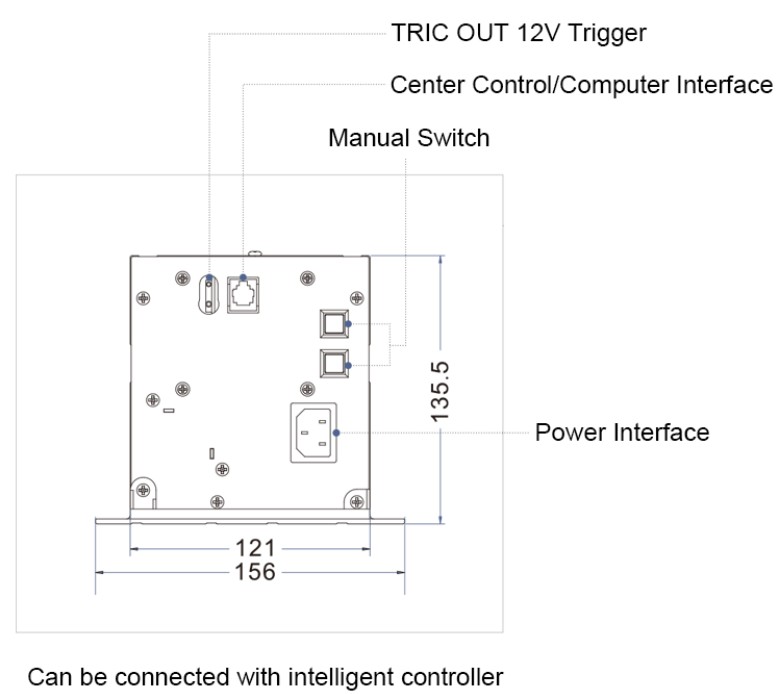

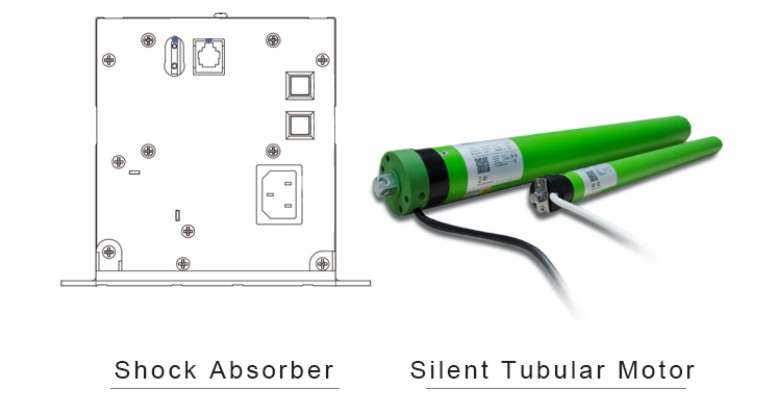

HCL1 features the IR remote, 12V trigger and RS485. The white case is made of aluminum. Its unusually quiet operation is due to the powerful and quiet tubular motor.
This recessed projection screen is packed full of great features and will work perfect for just about any application including business meetings boardrooms classrooms and home theater setups.
| Size | Viewing Area(mm) | Top Black Border B3 (mm) | Total Height A (mm) | Total Length L(mm) | Groove Length (mm) | Groove Width (mm) | Package Size (mm) | Weight (KG) | |||||
| Width (W) | Height (H) | Non-tension | Tab-tension | Non-tension | Tab-tension | Non-tension | Tab-tension | ||||||
| 4:3 | 80"(1625*1219) | 1625 | 1219 | 400 | 1850 | 2000 | 2165 | 1975 | 2140 | 132 | 211*223*2150 | 211*223*2315 | 18 |
| 100"(2032*1524) | 2032 | 1524 | 250 | 2000 | 2407 | 2572 | 2382 | 2547 | 132 | 211*223*2557 | 211*223*2722 | 21 | |
| 120"(2438*1828) | 2438 | 1828 | 150 | 2207 | 2813 | 2978 | 2788 | 2953 | 132 | 211*223*2963 | 211*223*3128 | 24 | |
| 150"(3048*2286) | 3048 | 2286 | 100 | 2615 | 3423 | 3588 | 3398 | 3563 | 132 | 211*223*3573 | 211*223*3738 | 29 | |
| 160"(3251*2438) | 3251 | 2438 | 100 | 2767 | 3626 | 3791 | 3601 | 3766 | 132 | 211*223*3776 | 211*223*3941 | 30 | |
| 170"(3454*2590) | 3454 | 2590 | 100 | 2949 | 3829 | 3994 | 3804 | 3969 | 132 | 211*223*3979 | 211*223*4144 | 32 | |
| 16:9 | 80"(1771*996) | 1771 | 996 | 625 | 1850 | 2146 | 2311 | 2121 | 2286 | 132 | 211*223*2296 | 211*223*2461 | 19 |
| 92"(2036*1145) | 2036 | 1145 | 475 | 1850 | 2411 | 2576 | 2386 | 2551 | 132 | 211*223*2561 | 211*223*2726 | 21 | |
| 100"(2213*1245) | 2213 | 1245 | 375 | 1850 | 2588 | 2753 | 2563 | 2728 | 132 | 211*223*2738 | 211*223*2903 | 22 | |
| 110"(2435*1369) | 2435 | 1369 | 400 | 1998 | 2810 | 2975 | 2785 | 2950 | 132 | 211*223*2960 | 211*223*3125 | 23 | |
| 120"(2656*1494) | 2656 | 1494 | 280 | 2003 | 3031 | 3196 | 3006 | 3171 | 132 | 211*223*3181 | 211*223*3346 | 25 | |
| 130"(2877*1618) | 2877 | 1618 | 150 | 1997 | 3252 | 3417 | 3227 | 3392 | 132 | 211*223*3402 | 211*223*3567 | 26 | |
| 135"(2988*1681) | 2988 | 1681 | 150 | 2060 | 3363 | 3528 | 3338 | 3503 | 132 | 211*223*3513 | 211*223*3678 | 27 | |
| 150"(3320*1867) | 3320 | 1867 | 150 | 2246 | 3695 | 3860 | 3670 | 3835 | 132 | 211*223*3845 | 211*223*4010 | 30 | |
| 160"(3542*1992) | 3542 | 1992 | 150 | 2371 | 3917 | 4082 | 3892 | 4057 | 132 | 211*223*4067 | 211*223*4232 | 32 | |
| 170"(3763*2116) | 3763 | 2116 | 150 | 2495 | 4138 | 4303 | 4113 | 4278 | 132 | 211*223*4288 | 211*223*4453 | 34 | |
All of our projection screens are packed with sturdy carton box, and the surface of the carton covered a waterproof plastic film to prevent damage during transportation.
