coated theater screen factory for household
1. XY Screens Tab tensioned series is made of materials which are carefully selected and sourced. The raw materials used do not contain any toxic or harmful substances such as mercury, lead, polybrominated biphenyl, and polybrominated diphenyl ethers. The warranty period of our products is 12 months
2. This product is the best choice for those who feel hot when they sleep, because it has a light feel. XY projection screen allows for a very flat projection surface
3. This product has electromagnetic compatibility. The electromagnetic interference it generates does not exceed the level that allows radio and telecommunication equipment and other equipment to operate as intended. Our high-quality products have great reliability
4. This product has electromagnetic compatibility. Techniques and technologies for reducing disturbance and enhancing immunity are cleverly used in its manufacturing. Our screens bring you excellent visual effects

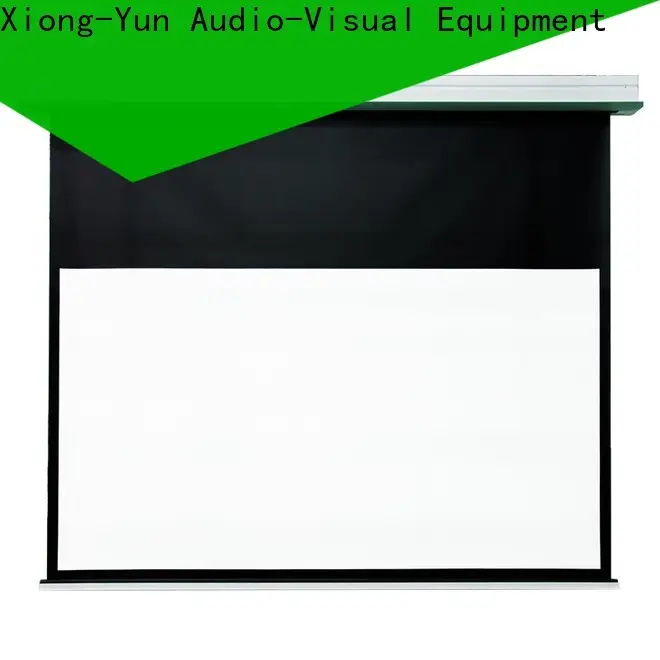

In-Ceiling Recessed Electric Projector Screen for Home Cinema HCL1
| Housing Material: | Aluminum Alloy |
| Housing Color: | White |
| Size: | 80-170 inch / customized |
| Aspect Ratio: | 16:9 / 16:10 / 4:3 / 1:1 / 2.35:1 / customized |
| Tab Tension: | Optional |
| 3D: | Yes |
| 4K: | Different fabrics are optional |
XY Screens In-Ceiling Electric Projection Screen HCL1 is a concealed in-ceiling mount electric screen, where the casing is mounted within the ceiling structure, creating a flush surface. The screen surface is flat, with exceptional color and uniformity. The screen surface provides an ultra-wide viewing angle of 160 degrees(different fabrics are optional) to avoid hot-spotting. This screen is perfect for any residential, commercial or house of worship installation that requires a flush-mounted projection screen that can be hidden while not in use.
HCL1 features the IR remote, 12V trigger and RS485. The white case is made of aluminum. Its unusually quiet operation is due to the powerful and quiet tubular motor.
This recessed projection screen is packed full of great features and will work perfect for just about any application including business meetings boardrooms classrooms and home theater setups.
| Size | Viewing Area(mm) | Top Black Border B3 (mm) | Total Height A (mm) | Total Length L(mm) | Groove Length (mm) | Groove Width (mm) | Package Size (mm) | Weight (KG) | |||||
| Width (W) | Height (H) | Non-tension | Tab-tension | Non-tension | Tab-tension | Non-tension | Tab-tension | ||||||
| 4:3 | 80"(1625*1219) | 1625 | 1219 | 400 | 1850 | 2000 | 2165 | 1975 | 2140 | 132 | 211*223*2150 | 211*223*2315 | 18 |
| 100"(2032*1524) | 2032 | 1524 | 250 | 2000 | 2407 | 2572 | 2382 | 2547 | 132 | 211*223*2557 | 211*223*2722 | 21 | |
| 120"(2438*1828) | 2438 | 1828 | 150 | 2207 | 2813 | 2978 | 2788 | 2953 | 132 | 211*223*2963 | 211*223*3128 | 24 | |
| 150"(3048*2286) | 3048 | 2286 | 100 | 2615 | 3423 | 3588 | 3398 | 3563 | 132 | 211*223*3573 | 211*223*3738 | 29 | |
| 160"(3251*2438) | 3251 | 2438 | 100 | 2767 | 3626 | 3791 | 3601 | 3766 | 132 | 211*223*3776 | 211*223*3941 | 30 | |
| 170"(3454*2590) | 3454 | 2590 | 100 | 2949 | 3829 | 3994 | 3804 | 3969 | 132 | 211*223*3979 | 211*223*4144 | 32 | |
| 16:9 | 80"(1771*996) | 1771 | 996 | 625 | 1850 | 2146 | 2311 | 2121 | 2286 | 132 | 211*223*2296 | 211*223*2461 | 19 |
| 92"(2036*1145) | 2036 | 1145 | 475 | 1850 | 2411 | 2576 | 2386 | 2551 | 132 | 211*223*2561 | 211*223*2726 | 21 | |
| 100"(2213*1245) | 2213 | 1245 | 375 | 1850 | 2588 | 2753 | 2563 | 2728 | 132 | 211*223*2738 | 211*223*2903 | 22 | |
| 110"(2435*1369) | 2435 | 1369 | 400 | 1998 | 2810 | 2975 | 2785 | 2950 | 132 | 211*223*2960 | 211*223*3125 | 23 | |
| 120"(2656*1494) | 2656 | 1494 | 280 | 2003 | 3031 | 3196 | 3006 | 3171 | 132 | 211*223*3181 | 211*223*3346 | 25 | |
| 130"(2877*1618) | 2877 | 1618 | 150 | 1997 | 3252 | 3417 | 3227 | 3392 | 132 | 211*223*3402 | 211*223*3567 | 26 | |
| 135"(2988*1681) | 2988 | 1681 | 150 | 2060 | 3363 | 3528 | 3338 | 3503 | 132 | 211*223*3513 | 211*223*3678 | 27 | |
| 150"(3320*1867) | 3320 | 1867 | 150 | 2246 | 3695 | 3860 | 3670 | 3835 | 132 | 211*223*3845 | 211*223*4010 | 30 | |
| 160"(3542*1992) | 3542 | 1992 | 150 | 2371 | 3917 | 4082 | 3892 | 4057 | 132 | 211*223*4067 | 211*223*4232 | 32 | |
| 170"(3763*2116) | 3763 | 2116 | 150 | 2495 | 4138 | 4303 | 4113 | 4278 | 132 | 211*223*4288 | 211*223*4453 | 34 | |
All of our projection screens are packed with sturdy carton box, and the surface of the carton covered a waterproof plastic film to prevent damage during transportation.
Company Features
1. The quality of our theater screen still keeps unsurpassed in China.
2. We always adhere to the business philosophy of 'high-quality products and good service'. With far-sighted vision, we are committed to introducing useful manufacturing technologies and equipment, and cultivate a group of professional customer service teams.
Professional in producing projection screens over 10 years
