HD Home Theater Fixed Frame Projector Screen HK80B Series
Fixed Frame Projection Screen 80B Series
◆◆ Product Description
XY screens Fixed Frame Screens are perfect for cinemas or any places where you need to fix the screen. It is enclosed in an attractive velvet wrapped lightweight aluminum alloy frame. HK80B Series Fixed Frame Screen provides excellent picture quality - Suitable for 4K&3D television/movies.
We offer various types of screen surfaces to suit your viewing environment. Different surfaces are available for different frames:
HK80B - WF1, GF1, Sound Max2, WFS1, WF3D, RGF1, MF1
Installation is easy - With its easy and adjustable fabric spring system, our Fixed Frame Screen is perfectly and permanently tensioned, ensuring that the screen is as flat and level as the mirror. Special designed slim bracket for an easy click on installation, also available as an in-wall display. Therefore, the users are able to set up in seconds.
◆◆ Product Specification
| Frame Material: | Aluminum Alloy |
| Housing Color: | Black / White / Grey / Orange / Blue / Golden Velvet |
| Size: | 80-200 inch / customized |
| Aspect Ratio: | 16:9 / 16:10 / 4:3 / 1:1 / 2.35:1 / customized |

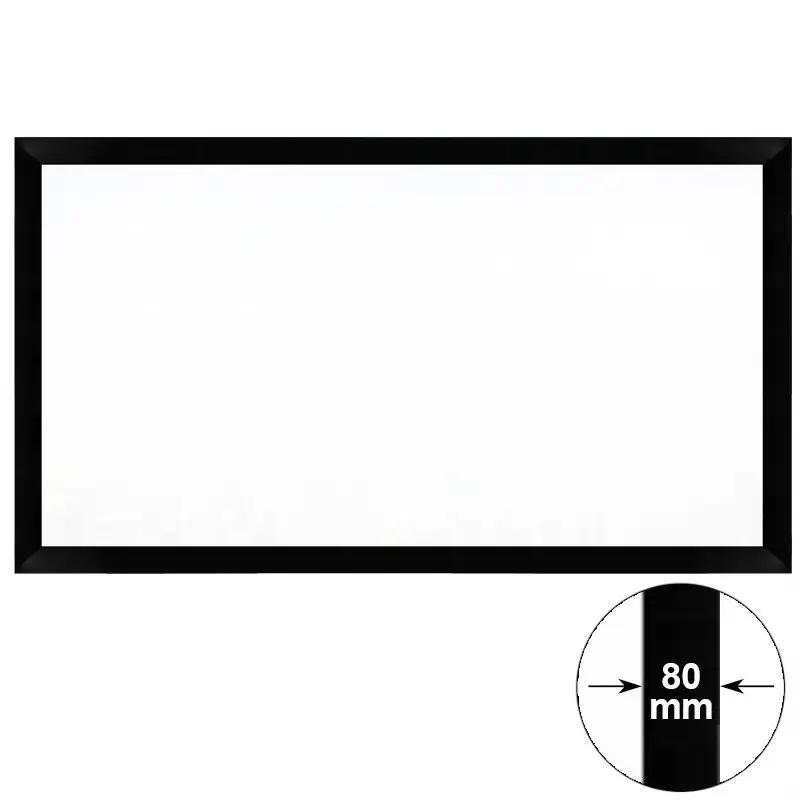

| Frame Width: | 80mm |
| HD: | Yes |
| 3D: | Yes |
| 4K: | Different fabrics are optional |
◆◆ Product Features
◆ Four Sided Tension Design - Spring System
The tension springs along with the fixing lugs stretching and tightening the fabric to make the screen surface completely flat and wrinkle-free
High quality aluminum alloy frame wrapped in velvet.
Corner brace
80mm width aluminum alloy frame
Elegant appearance
Stable and easy hook system
Bottom Mouting Bracket
◆ In order to facilitate transport, horizontal frame of 120"+ will be jointed by two or three pieces to reduce the total length
1. Top Bracket 2. Bottom Bracket 3. Corner Brace 4. Connecting Bar
5. Screwdriver 6. Hook(To install the springs) 7. Spring 8. Flexible Mouting Bracket
Vivid colors are optional.
Black
Golden
Orange
Grey
Blue
|
Product Model |
Fabric Model | HD/4K | Support 3D Mode | Sound-Transparent |
|---|---|---|---|---|
| HK80B-WF1 | WF1 | HD | Active | No |
| HK80B-GF1 | GF1 | HD | Active | No |
| HK80B-MF1 | MF1 | HD | Active + Passive | No |
| HK80B-FS1 | FS1 | HD | Active | Yes |
| HK80B-Sound Max2 | Sound Max2 | HD | Active | Yes |
| HK80B-RGF1 | RGF1 | HD | Active | No |
1. According to the quantity of the mounting brackets and appropriate distance, you should install the brackets at the suitable position on the wall with screws.
2. Hang the screen on the wall.
Install the bottom bracket if necessary(If you need to fix the screen or find that the bottom of the screen does not fit perfectly on the wall, please follow the steps below.
1. Take out the bottom bracket(Please note that the mounting position is different for different frames.)
2. Gently lift the bottom of the screen, use the bottom bracket to hook the slot position of the frame.
3. Tighten a screw and installation completed.
Supporting Customized Size
Size From 80" to 200" are available in any ratio
