large projector screen inch down project Warranty XY Screens
1. Aseismic design reduces vibration and noise in operation. XY Screens factory has established itself as a leading manufacturer, trader, and manufacture of large projector screen in the market.
2. XY projection screen bestows a more uniform image surface and truer color rendition. XY Screens is full of vitality, energy and warrior spirit.
3. Motorized Projection Screen adopts no weighing projector screen supplier structure, which can reduce the height and make compact structure, also convenient to install and reduce Large Size Commercial Motorized Screens. We offer these screens to the clients at a reasonable price.
4. Our launched Home theater projection screen are of high quality and projector screen material. Well known for remarkable performance and longevity, Xiongyun Projector Screens have placed a strong pillar in the market
5. For those wanting an amazingly flat surface, tensioned versions are also available, XY Screens Only Selects High Quality Material To Produce electric projector screen, large projector screen To Assure Their Quality.

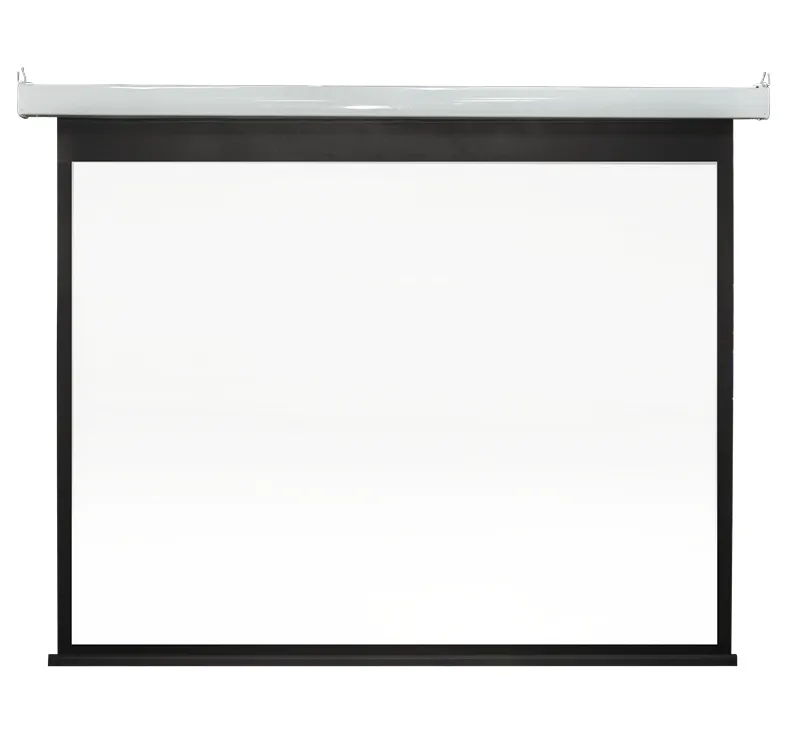

SC83 Steel paint intelligent Motorized Projection Screen
◆◆ Product Specification
| Housing Material: | IRON |
| Housing Color: | WHITE |
| Size: | 60~135 inch / customized |
| Aspect Ratio: | 16:9 / 4:3 / customized |
| HD: | Yes |
| 3D: | Yes |
| 4K: | Different fabrics are optional |
◆◆ Product Description
XR Screens Steel paint intelligent Motorized Projection Screen-SC83 is a High quality projector screen ,which suitable for low-mid market.Its' outer shell is made of painted lacquer, which is exquisite and beautiful, and has a fashionable shape.The motor adopts the silent tube motor of the famous factory, which is silent, dynamic enough, accurate in limit and reliable in quality;The product uses high-quality curtain, the projection effect is good, durable;The black side of the curtain is sprayed with environmentally friendly ink, no irritating smell, healthy and environmentally friendly;The reel adopts large-diameter thick reel, which is full of rigidity, and the product is durable and not easy to be deformed;the product size is accurate, real size real code, refuse to cut corners;the product packaging with high-quality carton, cardboard box is strong, wrapped in waterproof shrink film, not easy to be damaged.
◆◆ Product Feature

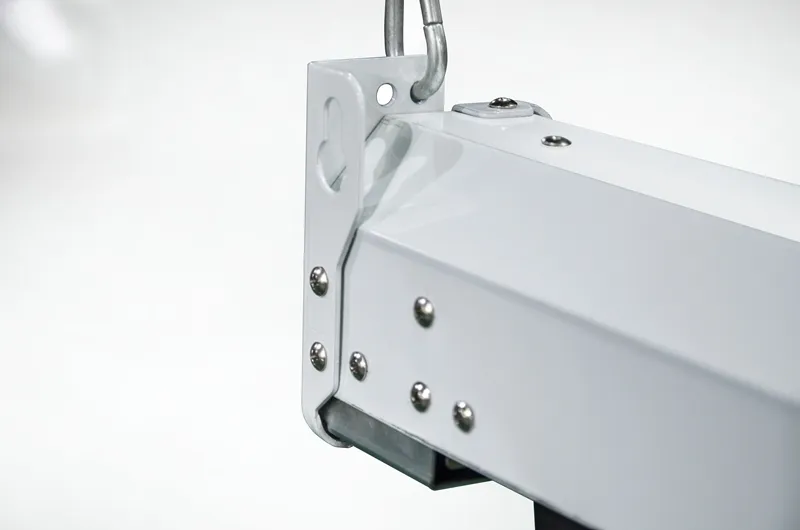

High Qulity Iron Housing
A variety of curtain materials can be selected
Large Torque Tubular
◆ High strength large diameter tube, avoid long tube bending down of the middle
◆ Large torque tubular motor, smooth running.
◆ Unique large screen fabric, flexible, flatness and eco-friendly.
Bulit-in Remote Control
IR &RF Remote Control are optional. RF remote-controlled distance reached 25m in any direction. IR remote-controlled distance reaches 8m, in the direction ± 60 degree.
External RF Remote Control
You can control the screen up and down with the manual switch
or the remote control.
product specification
| SC83 Motorized Projection Screen | |||||||||||
| Specifications | Projection area | Shell type | black side | black side | black side | Total screen height | Total screen long | packing size | |||
| Ratio | size | W(mm) | H(mm) | Shell shape | model | (B1size) | (B2size) | (B3size) | (Asize) | ||
| 4:3 | 100" | 2032 | 1524 | square | E300B | 40 | 40 | 290 | 1969 | 2262 | 2357*150*158 |
| 120" | 2438 | 1828 | square | E300B | 40 | 40 | 100 | 2083 | 2668 | 2763*150*158 | |
| 135" | 2988 | 1681 | square | E300B | 40 | 40 | 100 | 2312 | 2973 | 3068*150*158 | |
| 150" | 3048 | 2286 | hexagonal | E300A | 40 | 40 | 100 | 2585 | 3257 | 3352*211*223 | |
| 170" | 3454 | 2590 | hexagonal | E300A | 40 | 40 | 100 | 2889 | 3663 | 3758*211*223 | |
| 16:9 | 100" | 2213 | 1245 | square | E300B | 40 | 40 | 423 | 1823 | 2443 | 2538*150*158 |
| 106" | 2342 | 1317 | square | E300B | 40 | 40 | 500 | 1974 | 2576 | 2671*150*158 | |
| 110" | 2435 | 1370 | square | E300B | 40 | 40 | 450 | 1974 | 2665 | 2760*150*158 | |
| 120" | 2656 | 1494 | square | E300B | 40 | 40 | 320 | 1969 | 2886 | 2981*150*158 | |
| 130" | 2880 | 1620 | square | E300B | 40 | 40 | 200 | 1973 | 3107 | 3202*150*158 | |
| 135" | 2988 | 1681 | square | E300B | 40 | 40 | 140 | 1976 | 3218 | 3313*150*158 | |
| 140" | 3100 | 1745 | hexagonal | E300A | 40 | 40 | 100 | 2042 | 3308 | 3403*211*223 | |
| 150" | 3320 | 1867 | hexagonal | E300A | 40 | 40 | 100 | 2166 | 3529 | 3624*211*223 | |
| 160" | 3540 | 1990 | hexagonal | E300A | 40 | 40 | 100 | 2291 | 3751 | 3846*211*223 | |
| 170" | 3763 | 2116 | hexagonal | E300A | 40 | 40 | 100 | 2415 | 3972 | 4067*211*223 | |
| SC83 Motorized cable screen | |||||||||||
| Specifications | Projection area | Shell type | black side | black side | black side | Total screen height | Total screen long | packing size | |||
| Ratio | size | W(mm) | H(mm) | Shell shape | model | (B1size) | (B2size) | (B3size) | (Asize) | ||
| 4:3 | 100" | 2032 | 1524 | square | E300B | 40 | 40 | 290 | 1969 | 2418 | 2513*150*158 |
| 120" | 2438 | 1828 | square | E300B | 40 | 40 | 100 | 2083 | 2824 | 2919*150*158 | |
| 135" | 2988 | 1681 | square | E300B | 40 | 40 | 100 | 2312 | 3129 | 3224*150*158 | |
| 150" | 3048 | 2286 | hexagonal | E300A | 40 | 40 | 100 | 2585 | 3419 | 3514*211*223 | |
| 170" | 3454 | 2590 | hexagonal | E300A | 40 | 40 | 100 | 2889 | 3825 | 3920*211*223 | |
| 16:9 | 100" | 2213 | 1245 | square | E300B | 40 | 40 | 423 | 1823 | 2599 | 2694*150*158 |
| 106" | 2342 | 1317 | square | E300B | 40 | 40 | 500 | 1974 | 2732 | 2827*150*158 | |
| 110" | 2435 | 1370 | square | E300B | 40 | 40 | 450 | 1974 | 2821 | 2916*150*158 | |
| 120" | 2656 | 1494 | square | E300B | 40 | 40 | 320 | 1969 | 3042 | 3137*150*158 | |
| 130" | 2880 | 1620 | square | E300B | 40 | 40 | 200 | 1973 | 3263 | 3358*150*158 | |
| 135" | 2988 | 1681 | square | E300B | 40 | 40 | 140 | 1976 | 3374 | 3469*150*158 | |
| 140" | 3100 | 1745 | hexagonal | E300A | 40 | 40 | 100 | 2042 | 3470 | 3565*211*223 | |
| 150" | 3320 | 1867 | hexagonal | E300A | 40 | 40 | 100 | 2166 | 3691 | 3786*211*223 | |
| 160" | 3540 | 1990 | hexagonal | E300A | 40 | 40 | 100 | 2291 | 3913 | 4008*211*223 | |
| 170" | 3763 | 2116 | hexagonal | E300A | 40 | 40 | 100 | 2415 | 4134 | 4229*211*223 | |
Company Features
1. Guangzhou Xiong-Yun Audio-visual Equipment Co., Ltd. has a strong and complete production capacity.
2. We are committed to delivering operational excellence and the lowest cash cost of production.
Professional in producing projection screens over 10 years
