projector inceiling XY Screens Home theater projection screen
1. We are regarded as the remarkable firm which offers an extensive gamut of Home theater projection screen.
2. Made from home theater screen, XY Screens fixed projector screen prevents large projector screen. A wide range of Projector Screen is made available, which has been designed using modern technology to impart several beneficial features
3. We keep innovating our products to keep pace with the new trend, XY Screens Is One Of The Renowned Manufacturers Of theater screen.
4. With the aid of our professional team, theater projector screen can develop its highest performance even under the extreme weather. [卖点，特色句]

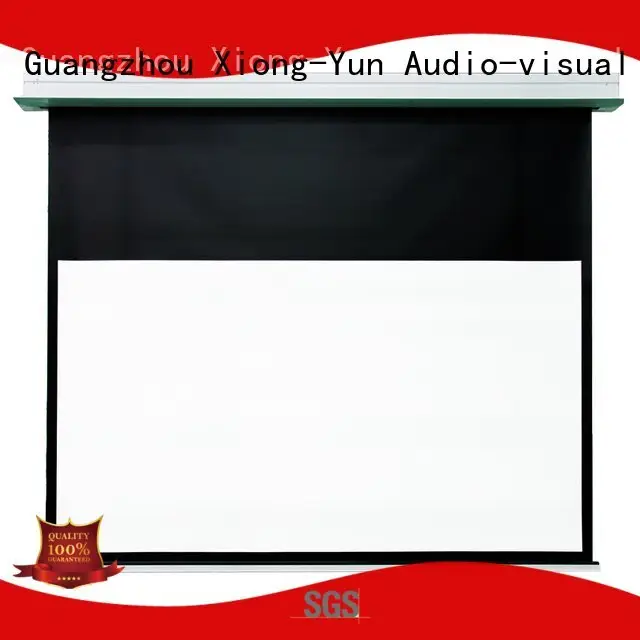

In-Ceiling Recessed Electric Projector Screen for Home Cinema HCL1
| Housing Material: | Aluminum Alloy |
| Housing Color: | White |
| Size: | 80-170 inch / customized |
| Aspect Ratio: | 16:9 / 16:10 / 4:3 / 1:1 / 2.35:1 / customized |
| Tab Tension: | Optional |
| 3D: | Yes |
| 4K: | Different fabrics are optional |
XY Screens In-Ceiling Electric Projection Screen HCL1 is a concealed in-ceiling mount electric screen, where the casing is mounted within the ceiling structure, creating a flush surface. The screen surface is flat, with exceptional color and uniformity. The screen surface provides an ultra-wide viewing angle of 160 degrees(different fabrics are optional) to avoid hot-spotting. This screen is perfect for any residential, commercial or house of worship installation that requires a flush-mounted projection screen that can be hidden while not in use.
HCL1 features the IR remote, 12V trigger and RS485. The white case is made of aluminum. Its unusually quiet operation is due to the powerful and quiet tubular motor.
This recessed projection screen is packed full of great features and will work perfect for just about any application including business meetings boardrooms classrooms and home theater setups.
| Size | Viewing Area(mm) | Top Black Border B3 (mm) | Total Height A (mm) | Total Length L(mm) | Groove Length (mm) | Groove Width (mm) | Package Size (mm) | Weight (KG) | |||||
| Width (W) | Height (H) | Non-tension | Tab-tension | Non-tension | Tab-tension | Non-tension | Tab-tension | ||||||
| 4:3 | 80"(1625*1219) | 1625 | 1219 | 400 | 1850 | 2000 | 2165 | 1975 | 2140 | 132 | 211*223*2150 | 211*223*2315 | 18 |
| 100"(2032*1524) | 2032 | 1524 | 250 | 2000 | 2407 | 2572 | 2382 | 2547 | 132 | 211*223*2557 | 211*223*2722 | 21 | |
| 120"(2438*1828) | 2438 | 1828 | 150 | 2207 | 2813 | 2978 | 2788 | 2953 | 132 | 211*223*2963 | 211*223*3128 | 24 | |
| 150"(3048*2286) | 3048 | 2286 | 100 | 2615 | 3423 | 3588 | 3398 | 3563 | 132 | 211*223*3573 | 211*223*3738 | 29 | |
| 160"(3251*2438) | 3251 | 2438 | 100 | 2767 | 3626 | 3791 | 3601 | 3766 | 132 | 211*223*3776 | 211*223*3941 | 30 | |
| 170"(3454*2590) | 3454 | 2590 | 100 | 2949 | 3829 | 3994 | 3804 | 3969 | 132 | 211*223*3979 | 211*223*4144 | 32 | |
| 16:9 | 80"(1771*996) | 1771 | 996 | 625 | 1850 | 2146 | 2311 | 2121 | 2286 | 132 | 211*223*2296 | 211*223*2461 | 19 |
| 92"(2036*1145) | 2036 | 1145 | 475 | 1850 | 2411 | 2576 | 2386 | 2551 | 132 | 211*223*2561 | 211*223*2726 | 21 | |
| 100"(2213*1245) | 2213 | 1245 | 375 | 1850 | 2588 | 2753 | 2563 | 2728 | 132 | 211*223*2738 | 211*223*2903 | 22 | |
| 110"(2435*1369) | 2435 | 1369 | 400 | 1998 | 2810 | 2975 | 2785 | 2950 | 132 | 211*223*2960 | 211*223*3125 | 23 | |
| 120"(2656*1494) | 2656 | 1494 | 280 | 2003 | 3031 | 3196 | 3006 | 3171 | 132 | 211*223*3181 | 211*223*3346 | 25 | |
| 130"(2877*1618) | 2877 | 1618 | 150 | 1997 | 3252 | 3417 | 3227 | 3392 | 132 | 211*223*3402 | 211*223*3567 | 26 | |
| 135"(2988*1681) | 2988 | 1681 | 150 | 2060 | 3363 | 3528 | 3338 | 3503 | 132 | 211*223*3513 | 211*223*3678 | 27 | |
| 150"(3320*1867) | 3320 | 1867 | 150 | 2246 | 3695 | 3860 | 3670 | 3835 | 132 | 211*223*3845 | 211*223*4010 | 30 | |
| 160"(3542*1992) | 3542 | 1992 | 150 | 2371 | 3917 | 4082 | 3892 | 4057 | 132 | 211*223*4067 | 211*223*4232 | 32 | |
| 170"(3763*2116) | 3763 | 2116 | 150 | 2495 | 4138 | 4303 | 4113 | 4278 | 132 | 211*223*4288 | 211*223*4453 | 34 | |
