pull down rear projection screen XY Screens
1. Keeping in mind the latest market developments, we manufacture and supply a quality assured collection of pull down projector screen. Our products are well received in China, the United States, Europe, the Philippines, Indonesia and other countries
2. Please call or drop us an email for further query. Xiongyun screens are designed using high quality material, which enhances the picture quality by absorbing the maximum light from the projector resulting in brighter and true color images
3. All of the pull down projector screen can be produced according to every client’s various needs. What you want is what we can do for you. Large diameter rollers ensure long-term screen integrity providing a consistent flat projection surface
4. These pull down projector screen are useful for pull down rear projection screen, electric pull down projector screen, pull down home theater screen, etc. Since its founding, we have evolved as a prominent Manufacturer and Supplier of a highly durable range of projector screen, projector brackets and motorized projector lift, etc.

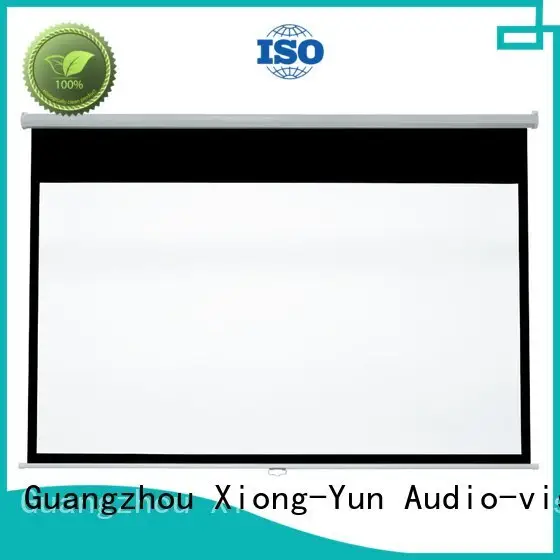

XY screens manual pull down projection screens provide a good viewing area with 160-degree viewing angle, suitable for wall or ceiling mounting, gain factor of 1.0, ideal for classroom, conference room, office, or home theater.
All of our manual projector screens come in multiple sizes and custom screen sizes are available. Advanced auto locking system enables you stop it at any position and lets you pick screen dimensions that work best for your projection. While retracting back to the housing slowly, there is no noise at all.

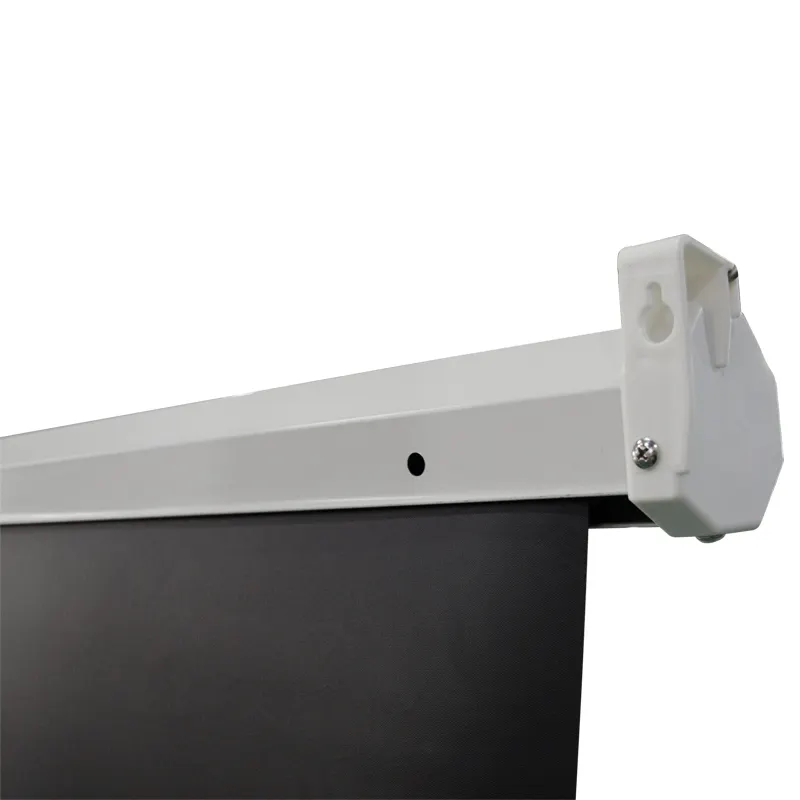

Octagonal steel housing in white, with environmentally friendly color-coated sheet, sturdy and durable, simple shape, elegant style. Easy to install and easy to use.
We use high-quality matte white fabric which offers clear and vivid picture, without causing visual fatigue for long time. The black borders are painted with eco-friendly paint, without pungent smell.
Our manual screens are packed with strong carton to prevent damage during transportation.
◆◆ Product Features
Wrinkle Free Screen

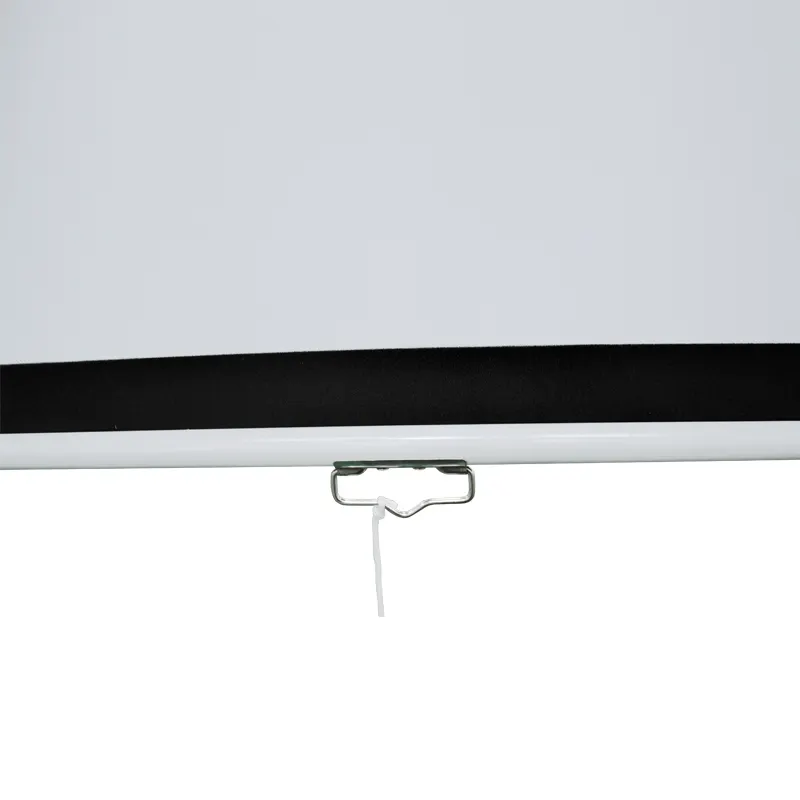

Self-Lock Limitless Positioning
Environmentally friendly color-coated sheet
Wall Mount and Ceiling Mount are available for installation. Tightening screens ensure the screen remains locked and secured.
| Format | Size | Viewing Area | Left-Right Black Border | Bottom Black Border | Top Black Border | Total Height | Total Length | Package Size(mm) | N.W. | G.W. | |
| W(mm) | H(mm) | B1 | B2 | B3 | A | (KG) | (KG) | ||||
| 4:3 | 60" | 1219 | 914 | 40 | 40 | 50 | 1145 | 1387 | 1442*140*110 | 4.3 | 5.4 |
| 72" | 1463 | 1097 | 40 | 40 | 50 | 1328 | 1631 | 1686*140*110 | 4.8 | 5.9 | |
| 84" | 1706 | 1280 | 40 | 40 | 50 | 1511 | 1874 | 1929*140*110 | 5.3 | 6.5 | |
| 100" | 2032 | 1524 | 40 | 40 | 50 | 1755 | 2200 | 2255*140*110 | 7 | 8.3 | |
| 120" | 2438 | 1828 | 40 | 40 | 50 | 2059 | 2606 | 2661*140*110 | 7.9 | 9.3 | |
| 16:9 | 72" | 1593 | 896 | 40 | 40 | 300 | 1377 | 1761 | 1816*140*110 | 5.9 | 7.1 |
| 84" | 1859 | 1046 | 40 | 40 | 300 | 1527 | 2027 | 2082*140*110 | 6.6 | 7.9 | |
| 100" | 2213 | 1245 | 40 | 40 | 300 | 1726 | 2381 | 2436*140*110 | 7.3 | 8.8 | |
Company Features
1. Guangzhou Xiong-Yun Audio-visual Equipment Co., Ltd. is a family-run business and has been operated since pull down rear projection screen.
2. The pull down projector screen range being offered is examined well by the quality inspectors beyond all the stages of product development.
3. As well as complete pull down projector screen, we also supply electric pull down projector screen. Ask Online!.
Professional in producing projection screens over 10 years
Contact Information
- Tel: +86-20-39133522
- Fax: +86-20-39133523
- Email: info@xy-screen.com
- 24-hour hotline: +86-20-39133522
- Address: NO.178, Lanling Road, Lanhe Town, Nansha District, Guangzhou, Guangdong, China. 511400
XY Screens always follows the new trends and developments in the audiovisual market,
so we can provide customers with industry-leading one-stop solutions and OEM services for our professional audiovisual products.
