Thin Bezel HD Home Theater Projector Screen ZHK100B Series
◆◆ Company Advantages
1. Guangzhou Xiong-Yun Audio-visual Equipment Co., Ltd. can customize the colors, shapes and sizes according to the needs of clients. The CHK Series Curved Frame projector screen design enhances the aesthetic appeal, while also optimizing light reflectivity towards the audience.
2. The product finds its market place and has a high market share. Since its founding, we have evolved as a prominent Manufacturer and Supplier of a highly durable range of projector screen, projector brackets and motorized projector lift, etc.
3. The quality control brings standardization into the product. Making presentations becomes very easy with our Projector Screens that are fully adjustable.
4. hd home theater projector from Guangzhou Xiong-Yun Audio-visual Equipment Co., Ltd. has strong competitiveness and high economic efficiency. Our strength lies in sophisticated manufacturing and in-house design unit that help us in offering vast range and specifications to our clients.
◆◆ Product Description

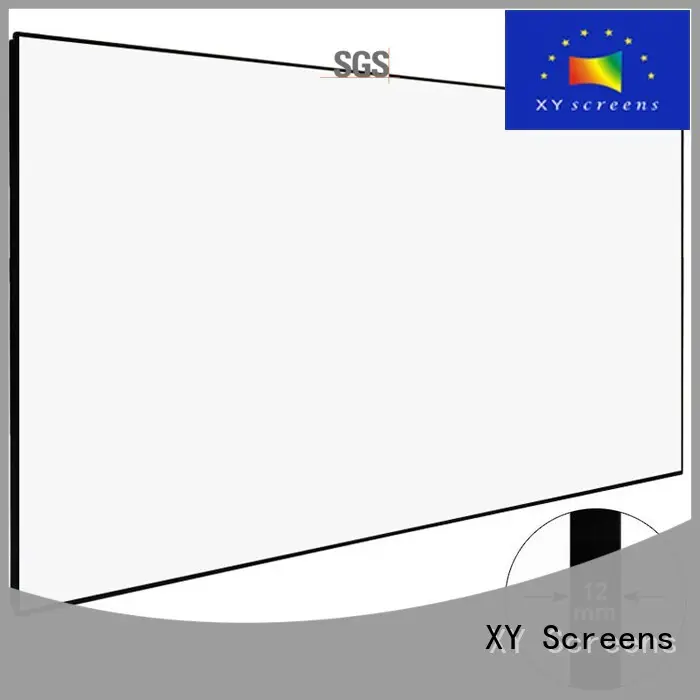

Our Curved Ultra Thin Frame Projection Screen CZHK100B which provides the thinnest visible bezel/frame available in the market today is uniquely designed to resemble a premium LED TV but with much larger viewing area options. CZHK100B Thin Edge Frame uses sturdy extruded aluminum alloy frame with 12mm edge border that offers maximized viewing, making this an excellent addition to both home theater and commercial applications. Watch as your viewing experience soars to new heights of enjoyment!
Excellent picture quality - Suitable for 4K & 3D television/movies.
Installation is easy - With its easy and adjustable fabric spring system, our Thin Frame Screen is perfectly and permanently tensioned, ensuring that the screen is as flat and level as the mirror. Special designed slim bracket for an easy click on installation, also available as an in-wall display. Therefore, the users are able to set up in seconds.
◆◆ Product Specification
| Frame Material: | Aluminum Alloy |
| Housing Color: | Black / White / Grey / Orange / Blue / Golden Velvet |
| Size: | 80-200 inch / customized |
| Aspect Ratio: | 16:9 / 16:10 / 4:3 / 1:1 / 2.35:1 / customized |
| Frame Width: | 12mm |
| HD: | Yes |
| 3D: | Yes |
| 4K: | Different fabrics are optional |
◆◆ Product Features
◆ Four Sided Tension Design - Spring System
The tension springs along with the fixing lugs stretching and tightening the fabric to make the screen surface completely flat and wrinkle-free
◆ In order to facilitate transport, horizontal frame of 120"+ will be jointed by two or three pieces to reduce the total length
◆◆ Installation Accessories
1. Top Bracket 2. Bottom Bracket 3. Inter Corner Brace 4. External Connecting Bar
5. Connecting Bar 6. Screwdriver 7. Hook(To install the springs) 8. (Accessories of curved frame only )
◆◆ Available in the following front projection screen materials
| Product Model | Fabric Model | HD/4K | Support 3D Mode | Sound-Transparent |
| CZHK100B-Black Crystal III | Black Crystal III | HD | Active | No |
| CZHK100B-WF1 Pro | WF1 Pro | 4K | Active | No |
| CZHK100B-WF1 Pro Max 4K | WF1 Pro Max 4K | 4K | Active | No |
| CZHK100B-WF1 Pro Max 4K HG | WF1 Pro Max 4K HG | 4K | Active | No |
| CZHK100B-Sound Max 4K | Sound Max4K | 4K | Active | Yes |
| CZHK100B-Sound Max 5 | Sound Max5 | HD | Active | Yes |
| CZHK100B-Sound Max 5 HG | Sound Max5 HG | HD | Active | Yes |
◆◆ Installation of CZHK100B Series
1. According to the quantity of the mounting brackets and appropriate distance, you should install the brackets at the suitable position on the wall with screws.
2. Hang the screen on the wall.
◆◆ Dimension of ZHK100B-PET Grid
| Ultra Thin Frame Projection Screen | |||||||
| Format | Size | View Area | Frame Size | Package Size | Frame Width(mm) |
||
| (inch) | W*H(mm) | Frame Length(L)\ |
Frame Width(A) |
L(mm)*W(mm)*H | |||
| 16:9 | 80" | 1771 | 996 | 1795 | 1020 | 1983*342*148 | 12 |
| 90" | 1992 | 1120 | 2016 | 1144 | 2204*342*148 | 12 | |
| 100" | 2213 | 1245 | 2237 | 1269 | 2425*342*148 | 12 | |
| 110" | 2435 | 1369 | 2459 | 1393 | 2647*342*148 | 12 | |
| 120" | 2656 | 1494 | 2680 | 1518 | 2868*342*148 | 12 | |
| 135" | 2988 | 1681 | 3012 | 1705 | 3200*342*148 | 12 | |
| 140" | 3099 | 1743 | 3123 | 1767 | 3311*342*148 | 12 | |
| 150" | 3320 | 1867 | 3344 | 1891 | 3532*342*148 | 12 | |
| 160" | 3542 | 1992 | 3566 | 2016 | 3680*342*148 | 12 | |
| 170" | 3763 | 2116 | 3787 | 2140 | 3754*342*148 | 12 | |
| 180" | 3984 | 2241 | 4008 | 2265 | 2596*240*264 | 12 | |
| 200° | 4427 | 2490 | 4451 | 2514 | 2847*240*264 | 12 | |
| 4:3 | 100" | 2032 | 1524 | 2056 | 1548 | 2244*342*148 | 12 |
| 120" | 2438 | 1828 | 2462 | 1852 | 2650*342*148 | 12 | |
| 150" | 3048 | 2286 | 3072 | 2310 | 3260*342*148 | 12 | |
| 180" | 3657 | 2743 | 3681 | 2767 | 3869*240*264 | 12 | |
| 200" | 4064 | 3048 | 4088 | 3072 | 3399*240*264 | 12 | |
| 2.35:1 | 120" | 2804 | 1193 | 2828 | 1217 | 3016*342*148 | 12 |
| 135" | 3155 | 1342 | 3179 | 1366 | 3367*342*148 | 12 | |
| 150" | 3505 | 1491 | 3529 | 1515 | 3717*342*148 | 12 | |
| 180" | 4206 | 1790 | 4230 | 1814 | 2300*240*264 | 12 | |
| 200" | 4674 | 1989 | 4698 | 2013 | 2534*240*264 | 12 | |
◆◆ Package
All of our projection screens are packed with sturdy carton box, and the surface of the carton covered a waterproof plastic film to prevent damage during transportation.
◆◆ Company Features
1. Guangzhou Xiong-Yun Audio-visual Equipment Co., Ltd. stands at the forefront in domestic markets. We are famous for a strong capability in developing and manufacturing full hd home projector . Our products have been exported to many countries such as America, Canada, and South Korea. And these products receive high recognition, which in turn promotes our competitiveness and growth.
2. Our factory is equipped with advanced manufacturing facilities. These facilities include testing equipment that incorporates the latest technological advances, which constantly enhance the safety and quality of products.
3. Our people make the difference. They are trained and knowledgeable. Emphasizing the quality of both product and service, they render consistent support to customers. They are more than our employees, they’re partners. Seeking the harmonious development of XY Screens and society will make great contributions to the hd home theater projector industry. Call!
