Professional in producing projection screens over 11 years



XY Screens mini curved projector screen supplier for household1 1
XY Screens mini curved projector screen supplier for household1 2
XY Screens mini curved projector screen supplier for household1 3
XY Screens mini curved projector screen supplier for household1 4
XY Screens mini curved projector screen supplier for household1 5
XY Screens mini curved projector screen supplier for household1 1
XY Screens mini curved projector screen supplier for household1 2
XY Screens mini curved projector screen supplier for household1 3
XY Screens mini curved projector screen supplier for household1 4
XY Screens mini curved projector screen supplier for household1 5

XY Screens mini curved projector screen supplier for household1

Model:
CZHK100B
Original:
Guangzhou,China
MOQ:
1 pcs
Delivery Time:
3~7 working days
Trade Terms:
EXW, FOB Guangzhou, CIF, Door to door.
Payment Terms:
T/T, Western Union, PayPal, L/C
Packing:
Standard Export Cartons
Shipping:
By sea, By air or By express delivery (DHL/UPS/FEDEX/TNT)
Certificate:
UL,CE, ROHS, ISO 9001
OEM/ODM:
Accepted
Warranty:
12 months
Inquiry
Aluminum metal shell
16:9 / 4:3/customized
Company Advantages
1. XY Screens curved projector screen has been sent to the independent testing institutes for testing. It has been tested in the aspects of slip resistance, stability, abrasion resistance, and stitching reinforcement strength. XY projection screen is ideal for anywhere that requires professional results
2. It is difficult to have a developed and modern society without this product. It helps people improve their overall work or life efficiency. XY projection screens are available in a wide range of sizes and prices
3. The product is energy efficient. The energy-saving technology such as suppression surge technology can transfer nearly all of the energy in the motor to the device, which significantly reduces energy waste. The width of frame of the ultra thin fixed frame projection screen is only 12mm
4. This product not only removes the excess salts, suspended particles, and microbes, but also it retains its essential vitamins and minerals. XY projection screen offers a wide choice for all projections
  ◆◆ Product  Description

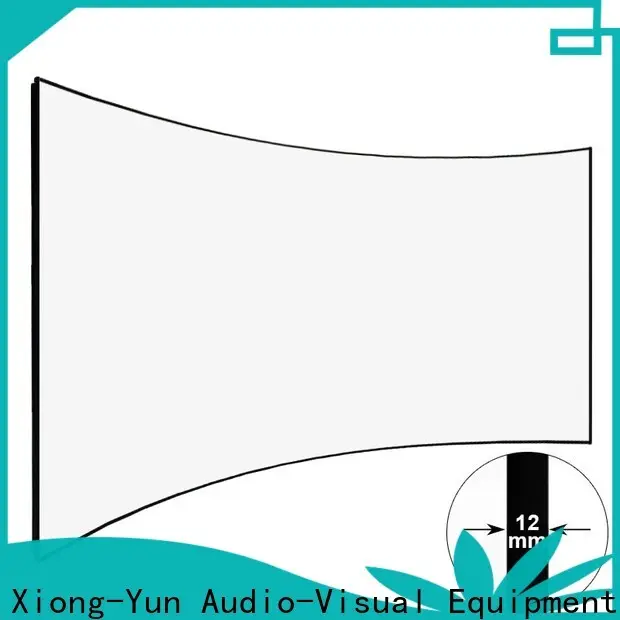

Our Curved Ultra Thin Frame Projection Screen CZHK100B which provides the thinnest visible bezel/frame available in the market today is uniquely designed to resemble a premium LED TV but with much larger viewing area options. CZHK100B Thin Edge Frame uses sturdy extruded aluminum alloy frame with 12mm edge border that offers maximized viewing, making this an excellent addition to both home theater and commercial applications. Watch as your viewing experience soars to new heights of enjoyment!

Excellent picture quality - Suitable for 4K & 3D television/movies.

Installation is easy - With its easy and adjustable fabric spring system, our Thin Frame Screen is perfectly and permanently tensioned, ensuring that the screen is as flat and level as the mirror. Special designed slim bracket for an easy click on installation, also available as an in-wall display. Therefore, the users are able to set up in seconds.



◆◆ Product  Specification


Frame Material:Aluminum Alloy
Housing Color:Black / White / Grey / Orange / Blue / Golden Velvet
Size:80-200 inch / customized
Aspect Ratio:16:9 / 16:10 / 4:3 / 1:1 / 2.35:1 / customized
Frame Width:12mm
HD:Yes
3D:Yes
4K:Different fabrics are optional

◆◆ Product  Features


 Four Sided Tension Design - Spring System

The tension springs along with the fixing lugs stretching and tightening the fabric to make the screen surface completely flat and wrinkle-free

XY Screens-Professional Curved Ultra Thin Frame Projection Screen Supplier

High quality aluminum alloy frame wrapped in velvet.

uploads/www.xyscreen.com/images/15151493702506.png

45° corner connecting bracket, easy to install

uploads/www.xyscreen.com/images/15151485641965.png

The frame adopt special Concave Design

XY Screens-Professional Curved Ultra Thin Frame Projection Screen Supplier-3

Connecting bar

uploads/www.xyscreen.com/images/15151493913930.png

Corner brace

uploads/www.xyscreen.com/images/15151504649749.png

Seamless Connecting

     In order to facilitate transport, horizontal frame of 120"+ will be jointed by two or three pieces to reduce the total length


Installation Accessories


uploads/www.xyscreen.com/images/15151496908843.png

 1. Top Bracket              2. Bottom Bracket             3. Inter Corner Brace           4. External Connecting Bar


                5. Connecting Bar  6. Screwdriver    7. Hook(To install the springs)  8. (Accessories of curved frame only )

Available in the following front projection screen materials
Collocations Recommend for HD /4K Home Theater

Product Model

Fabric ModelHD/4KSupport 3D ModeSound-Transparent
CZHK100B-Black Crystal IIIBlack Crystal IIIHDActiveNo
CZHK100B-WF1 ProWF1 Pro
4KActiveNo
CZHK100B-WF1 Pro Max 4K
WF1 Pro Max 4K
4KActive
No
CZHK100B-WF1 Pro Max 4K HG
WF1 Pro Max 4K HG
4K
Active
No
CZHK100B-Sound Max 4K
Sound Max4K
4K
Active
Yes
CZHK100B-Sound Max 5
Sound Max5
HD
Active
Yes
CZHK100B-Sound Max 5 HG
Sound Max5 HG
HD
Active
Yes


Installation of CZHK100B Series

XY Screens-Professional Curved Ultra Thin Frame Projection Screen Supplier-8

1. According to the quantity of the mounting brackets and appropriate distance, you should install the brackets at the suitable position on the wall with screws.

2. Hang the screen on the wall.


Dimension of CZHK100B Series


 Ultra Thin Frame  Projection Screen
FormatSizeView AreaFrame  SizePackage  SizeFrame Width(mm)
 (inch)W*H(mm)Frame Length(L)Frame Width(A)L(mm)*W(mm)*H
16:980"1771996179510201983*342*14812
90"19921120201611442204*342*14812
100"22131245223712692425*342*14812
110"24351369245913932647*342*14812
120"26561494268015182868*342*14812
135"29881681301217053200*342*14812
140"30991743312317673311*342*14812
150"33201867334418913532*342*14812
160"35421992356620163680*342*14812
170"37632116378721403754*342*14812
180"39842241400822652596*240*26412
200"44272490445125142847*240*26412
4:3100"20321524205615482244*342*14812
120"24381828246218522650*342*14812
150"30482286307223103260*342*14812
180"36572743368127673869*240*26412
200"40643048408830723399*240*26412
2.35:1120″28041193282812173016*342*14812
135″31551342317913663367*342*14812
150″35051491352915153717*342*14812
180″42061790423018142300*240*26412
200″46741989469820132534*240*26412

Supporting Customized Size

Size From 80" to 200" are available in any ratio

Package


undefined
undefined
undefined
       All of our projection screens are packed with sturdy carton box, and the surface of the carton covered a waterproof plastic film to prevent damage during transportation.
XY Screens-Professional Curved Ultra Thin Frame Projection Screen Supplier-12
