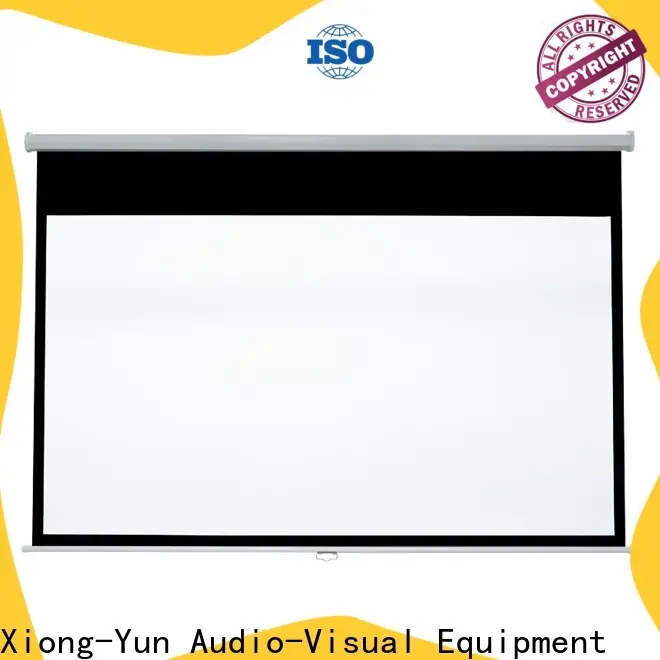

XY screens manual pull down projection screens provide a good viewing area with 160-degree viewing angle, suitable for wall or ceiling mounting, gain factor of 1.0, ideal for classroom, conference room, office, or home theater.
All of our manual projector screens come in multiple sizes and custom screen sizes are available. Advanced auto locking system enables you stop it at any position and lets you pick screen dimensions that work best for your projection. While retracting back to the housing slowly, there is no noise at all.
Octagonal steel housing in white, with environmentally friendly color-coated sheet, sturdy and durable, simple shape, elegant style. Easy to install and easy to use.
We use high-quality matte white fabric which offers clear and vivid picture, without causing visual fatigue for long time. The black borders are painted with eco-friendly paint, without pungent smell.
Our manual screens are packed with strong carton to prevent damage during transportation.
◆◆ Product Features
Wrinkle Free Screen
Self-Lock Limitless Positioning
Environmentally friendly color-coated sheet
Wall Mount and Ceiling Mount are available for installation. Tightening screens ensure the screen remains locked and secured.
Format | Size | Viewing Area | Left-Right Black Border | Bottom Black Border | Top Black Border | Total Height | Total Length | Package Size(mm) | N.W. | G.W. | |
W(mm) | H(mm) | B1 | B2 | B3 | A | (KG) | (KG) | ||||
4:3 | 60" | 1219 | 914 | 40 | 40 | 50 | 1145 | 1387 | 1442*140*110 | 4.3 | 5.4 |
72" | 1463 | 1097 | 40 | 40 | 50 | 1328 | 1631 | 1686*140*110 | 4.8 | 5.9 | |
84" | 1706 | 1280 | 40 | 40 | 50 | 1511 | 1874 | 1929*140*110 | 5.3 | 6.5 | |
100" | 2032 | 1524 | 40 | 40 | 50 | 1755 | 2200 | 2255*140*110 | 7 | 8.3 | |
120" | 2438 | 1828 | 40 | 40 | 50 | 2059 | 2606 | 2661*140*110 | 7.9 | 9.3 | |
16:9 | 72" | 1593 | 896 | 40 | 40 | 300 | 1377 | 1761 | 1816*140*110 | 5.9 | 7.1 |
84" | 1859 | 1046 | 40 | 40 | 300 | 1527 | 2027 | 2082*140*110 | 6.6 | 7.9 | |
100" | 2213 | 1245 | 40 | 40 | 300 | 1726 | 2381 | 2436*140*110 | 7.3 | 8.8 |
Professional in producing projection screens over 10 years
