XY Screens normal large portable projector screen directly sale for television
1. XY Screens movie projector and screen is carefully produced. It is treated with flame retardant, environmentally friendly fabrics, chemical and safe dyes. Its raw materials are skin-friendly. Our complete screen range is offered in numerous sizes and dimensions
2. It increasingly reflects its broad application areas and market prospects. XY projection screen looks great on the wall or ceiling whether it's in use or not
3. This product is not likely to color fading. It has a polished protective layer that enables it to free of the influence of UV-ray and sunlight exposure. XY projection screen is available in all common aspect ratios
4. It is friendly to the environment. It will not generate pollution such as VOC, lead, or nickel substances on the earth when it is disposed of. XY screens usually come with a wall mountable switch for operation with most offering an optional remote control

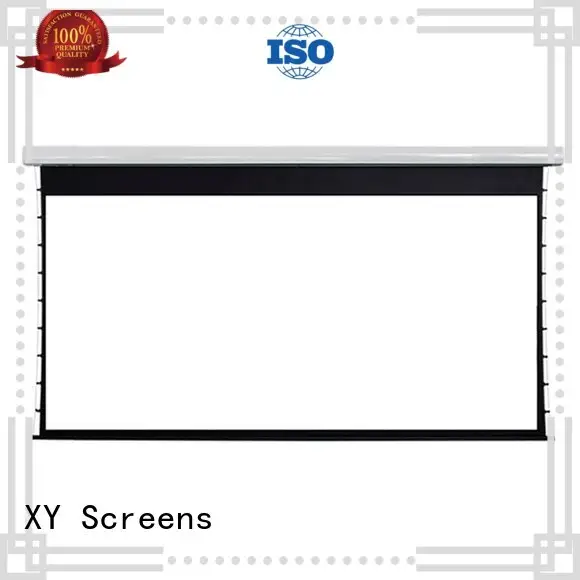

Large Intelligent Motorized Projection Screen
◆◆ Product Specification
| Housing Material: | Aluminum Alloy |
| Housing Color: | White |
| Size: | 180~250 inch / customized |
| Aspect Ratio: | 16:9 / 16:10 / 4:3 / 1:1 / 2.35:1 / customized |
| HD: | Yes |
| 3D: | Yes |
| 4K: | Different fabrics are optional |
◆◆ Product Description
EC150 series is a high-end paint aluminum shell intelligent electric screen, adopt large diameter silence Rotating-tube, automatic smoothing screen structure and aseismic design. With unique two piece casing design, provides a great convenience for repairing and commissioning.
Motor in roller design - Special Motor in roller design keeps quiet and smooth operation.
Stylish and durable - The aluminum alloy case is stylish and durable, available in white color. The strong bottom bar will retract into the case as a cover.
Equipped with quiet tubular motor - Equipped with quiet tubular motor keeps a quiet operation.
Unique roller design ensures the flattest screen surface - Large diameter rollers ensure long-term screen integrity providing a consistent flat projection surface.
Custom size - Black border are all around the screen fabric.Standard large upper black drop for format at 4:3/16:9/2.35:1. Customer-required format or black border is acceptable.
Equipped with IR/RF control, 12V trigger port and high quality controller.
◆◆ Product Features
Fashable Aluminum Shell
Two pieces casing design
Aseismic Design
Safe Hanging Pane
◆ EC150 using high quality paint aluminum shell: fashable, generous and graceful.
◆ Two pieces casing design provide a great convenience for repairing and coomissioning.
◆ Aseismic design reducing vibration and noise.
◆◆ Dynamical System
Using Large torque tubular motor from famous motor factory, durable and powerful.
Intelligent Remote Control System
◆ IR Remote Control ◆ RF Remote Control ◆ Central Control Adoptor ◆ Multi-Control Options
Product Model | Fabric Model | HD/4K | Support 3D Mode | Sound-Transparent |
| EC1-Sound Max5 | Sound Max5 | HD | Active | Yes |
| EC1-Sound Max4K | Sound Max4K | 4K | Active | Yes |
| EC1-WF1PRO | WF1PRO | HD | Active | No |
| EC1-WG1 | WG1 | 4K | Active | No |
| EC1-MF1 | MF1 | HD | Active +Passive | No |
| EC1-MFS1 | MFS1 | HD | Active +Passive | Yes |
| Format | Size | Viewing Area | Left-Right Black Border | Bottom Black Border | Top Black Border | Total height | Total Length | Package Size | N.W | G.W | ||
| Bulit in RF | External RF | L*W*H | ||||||||||
| W | H | B1(mm) | B2(mm) | B3(mm) | A(mm) | La(mm) | Lb(mm) | (mm) | (kg) | (kg) | ||
| 4:3 | 180" | 3658 | 2743 | 50 | 80 | 100 | 3115 | 4134 | 4130 | 4224*240*264 | 56 | 61 |
| 200" | 4064 | 3048 | 50 | 80 | 100 | 3420 | 4540 | 4536 | 4630*240*264 | 61 | 67 | |
| 220" | 4470 | 3353 | 50 | 80 | 150 | 3775 | 4946 | 4942 | 5036*240*264 | 66 | 73 | |
| 250" | 5080 | 3810 | 50 | 80 | 150 | 4232 | 5556 | 5552 | 5646*240*264 | 74 | 82 | |
| 16:9 | 180" | 3985 | 2240 | 50 | 80 | 100 | 2612 | 4461 | 4457 | 4551*240*264 | 58 | 65 |
| 200" | 4427 | 2489 | 50 | 80 | 100 | 2861 | 4903 | 4899 | 4993*240*264 | 64 | 71 | |
| 220" | 4870 | 2738 | 50 | 80 | 150 | 3160 | 5346 | 5342 | 5436*240*264 | 70 | 77 | |
| 250" | 5534 | 3112 | 50 | 80 | 150 | 3534 | 6010 | 6006 | 6100*240*264 | 78 | 86 | |
| 2.35:1 | 180" | 4206 | 1790 | 50 | 80 | 100 | 2162 | 4682 | 4678 | 4772*240*264 | 60 | 67 |
| 200" | 4674 | 1989 | 50 | 80 | 150 | 2411 | 5150 | 5146 | 5240*240*264 | 66 | 73 | |
| 220" | 5140 | 2180 | 50 | 80 | 150 | 2602 | 5616 | 5612 | 5706*240*264 | 72 | 79 | |
Company Features
1. At present, Guangzhou Xiong-Yun Audio-visual Equipment Co., Ltd.'s production scale and product quality of large portable projector screen are in the domestic leading position. Guangzhou Xiong-Yun Audio-visual Equipment Co., Ltd. pays attention to the training and management of talents from the establishment.
2. To guarantee our professional Guangzhou Xiong-Yun Audio-visual Equipment Co., Ltd. focuses on only large frames .
3. home movie projector is backed up by advanced production equipment, professional scientific and technical personnel. Helping customers meet or exceed their goals is our primary concern; our business is to build personalized partnerships with our customers. Call now!
